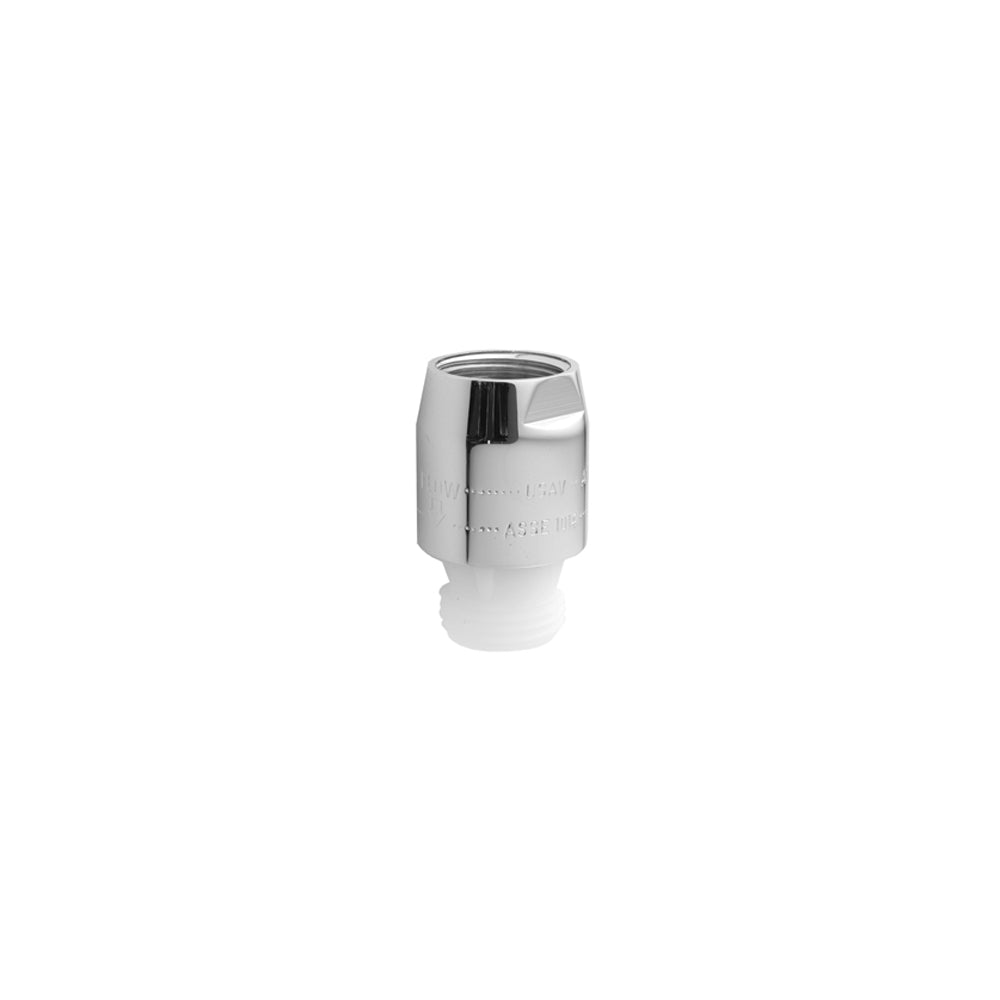

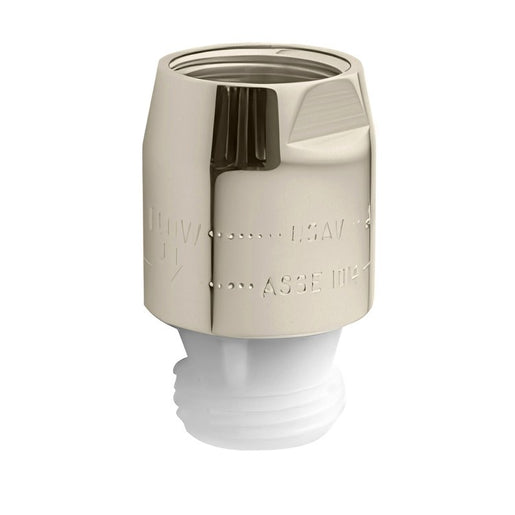

Jaclo 7006-SN vacuum breaker

Product Description

The JACLO 7006-SN is an atmospheric vacuum breaker with a 1/2 Inch female threaded inlet and a 1/2 Inch male threaded outlet, designed for use with hand showers where required by code. Constructed from brass with a satin nickel finish, it meets ASME A112.18.1, CSA B125.1, IAPMO, and CUPC standards.

• For use with Hand Showers where required by code
• Atmospheric vacuum breaker
• 1/2" Female inlet x 1/2" Male outlet

Product Highlights

Atmospheric vacuum breaker with brass body and satin nickel finish for hand shower applications.

Product Information

Standard Information

• Brand: JACLO
• Manufacturer Part Number: 7006-SN

Technical Specifications

• Applicable Standard: ASME A112.18.1, CSA B125.1, IAPMO, CUPC
• Body Material: Brass
• Catalog Number: 7006-SN
• Commodity Code Description Level 3: Check Valves and Backflow Preventers
• Color/Finish: Satin Nickel
• End Connection: Female Threaded x Male Threaded
• Nominal Size: 1/2 Inch x 1/2 Inch
• Product Sub-Type: Vacuum Breaker
• Product Type: Faucet Parts and Accessories
• Series/Model: 7006
• Type: Atmospheric
• Used On Item: Hand Shower
• Color family: Stainless Steel
• Brand: Jaclo
• Installation: In-Line
• Model: SN-7006
• Material: Brass _Shell
• MPN: SN-7006
• Room: Bathroom
• Suitable For: Shower
