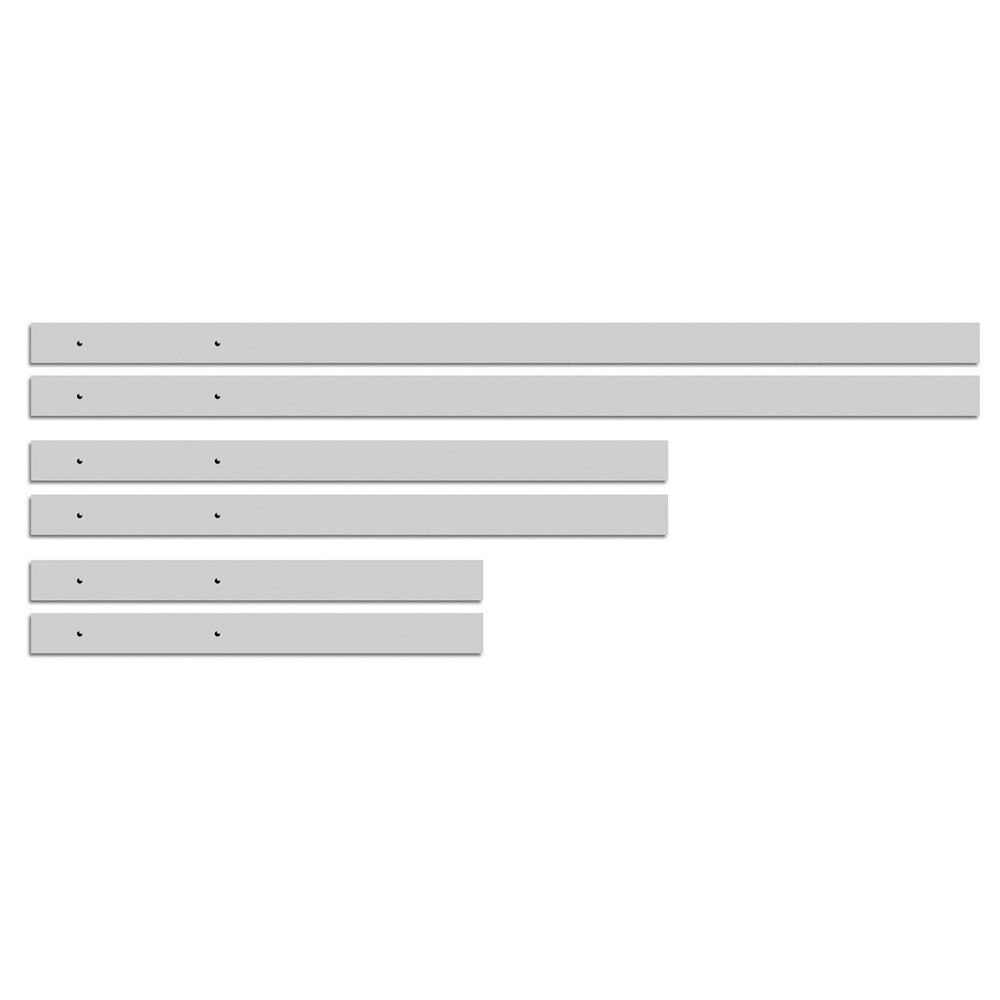

Jackson Safety 14794 Magnetic Burning Guide 72 Inch

Product Description

The JACKSON SAFETY 14794 is a magnetic burning guide designed to provide a strong, durable straight edge during thermal cutting and layout operations. Built for use with burning torches and plasma cutters, this tool features three cast-in magnets with a 30-pound pull each, allowing it to be positioned on ferrous work surfaces in virtually any orientation. The raised-plane blade gives the torch or cutter a consistent standoff from the work surface, improving cut quality and reducing edge drift. Fabricators and ironworkers handling structural steel rely on this guide to keep cuts accurate and repeatable across long runs.

This guide is suited for structural fabrication shops, field ironwork, and heavy manufacturing environments where straight, precise thermal cuts are required. It is built to handle the heat and spatter generated during cutting operations, making it a practical fixture tool for layout and repeated use on steel plate and structural shapes. Sold as a single unit.

Key Features

• Three cast-in 30-pound pull magnets for secure, hands-free positioning on ferrous surfaces
• Raised-plane blade keeps the torch or plasma cutter at a consistent height above the work surface
• Built to resist heat and spatter associated with torch and plasma cutting
• Straight edge design supports accurate layout and structural thermal cutting
• Compatible with burning torches and plasma cutters

Compatibility

Designed as a straight-edge guide accessory for use with hand-held burning torches and plasma cutting equipment on ferrous steel work surfaces.

Installation Notes

Position the guide against the steel workpiece and allow the cast-in magnets to secure it before initiating the cut. Ensure the work surface is free of heavy mill scale or debris that could prevent full magnet contact. Always follow applicable hot-work safety procedures, including use of appropriate PPE, before operating a torch or plasma cutter near the guide.

Technical Specifications

• Magnet Pull Force: 30 pounds per magnet (3 magnets)
• Blade Length: 24 inches (raised plane)
• Overall Length: 72 inches
• UPC: 626053604929
• Sold As: Each
• Minimum Order Quantity: 1

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14794
