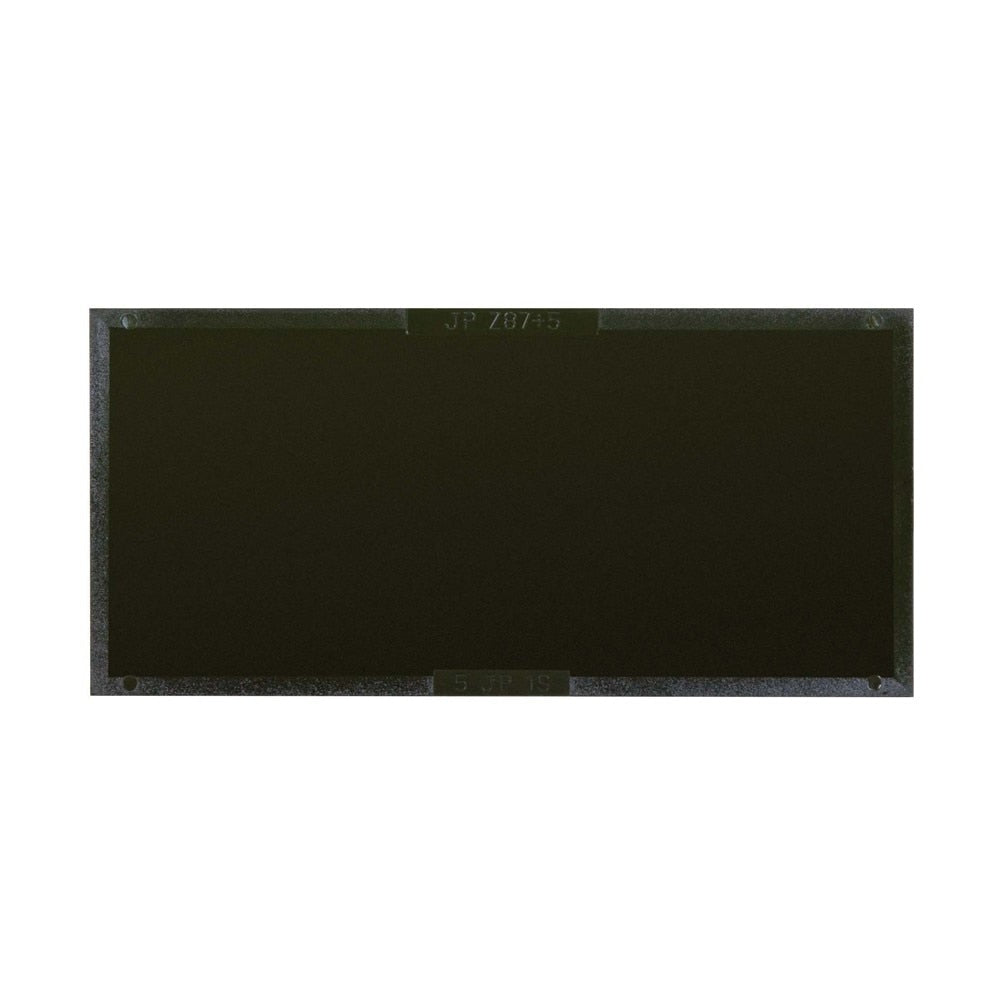

Jackson Safety 14571 Passive Filter Plate Shade 9

Product Description

The JACKSON SAFETY 14571 is a passive filter plate designed for use in welding helmets that require shade 9 lens protection. Constructed from polycarbonate, this filter plate serves as the primary optical filter element between the welder and the arc. It is part of a lens system that may also include cover lenses, safety plates, and magnifying plates depending on the helmet configuration. Licensed welding professionals and fabricators performing light-duty MIG, TIG, or plasma cutting operations at lower amperage levels will find shade 9 appropriate for those applications. The polycarbonate material provides impact resistance suited to the demands of a welding environment.

This filter plate is a direct replacement component for JACKSON SAFETY W10 and W20 Series passive welding helmets. Passive filter plates do not auto-darken — the shade is fixed at 9, making this plate appropriate for welding processes where a consistent, predetermined shade level is required. Replacement of worn or scratched filter plates is a routine maintenance task performed during helmet servicing to maintain adequate optical clarity and arc protection.

Key Features

• Fixed shade 9 passive filter — no electronic components, no battery required
• Polycarbonate construction for impact resistance in welding environments
• Compatible with JACKSON SAFETY W10 and W20 Series passive welding helmets
• Designed to work within a multi-layer lens system including cover lenses, safety plates, and magnifying plates
• Sold individually (each)

Compatibility

Designed for use with JACKSON SAFETY W10 and W20 Series passive welding helmets as a replacement filter plate component.

Installation Notes

Filter plate replacement should be performed with the welding helmet removed from service and the work area clear of arc hazards. Follow the helmet manufacturer's lens replacement procedure to ensure the filter plate, cover lens, and safety plate are seated in the correct order. Inspect the surrounding lens frame and gaskets for damage before reinstalling. Do not use a filter plate with visible cracks, deep scratches, or discoloration that may compromise optical integrity.

Technical Specifications

• Filter Type: Passive
• Shade: 9
• Material: Polycarbonate
• Unit of Measure: Each
• Minimum Order Quantity: 25

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14571
