Jackson Safety 14566 Passive Filter Plate Shade 9

Product Description

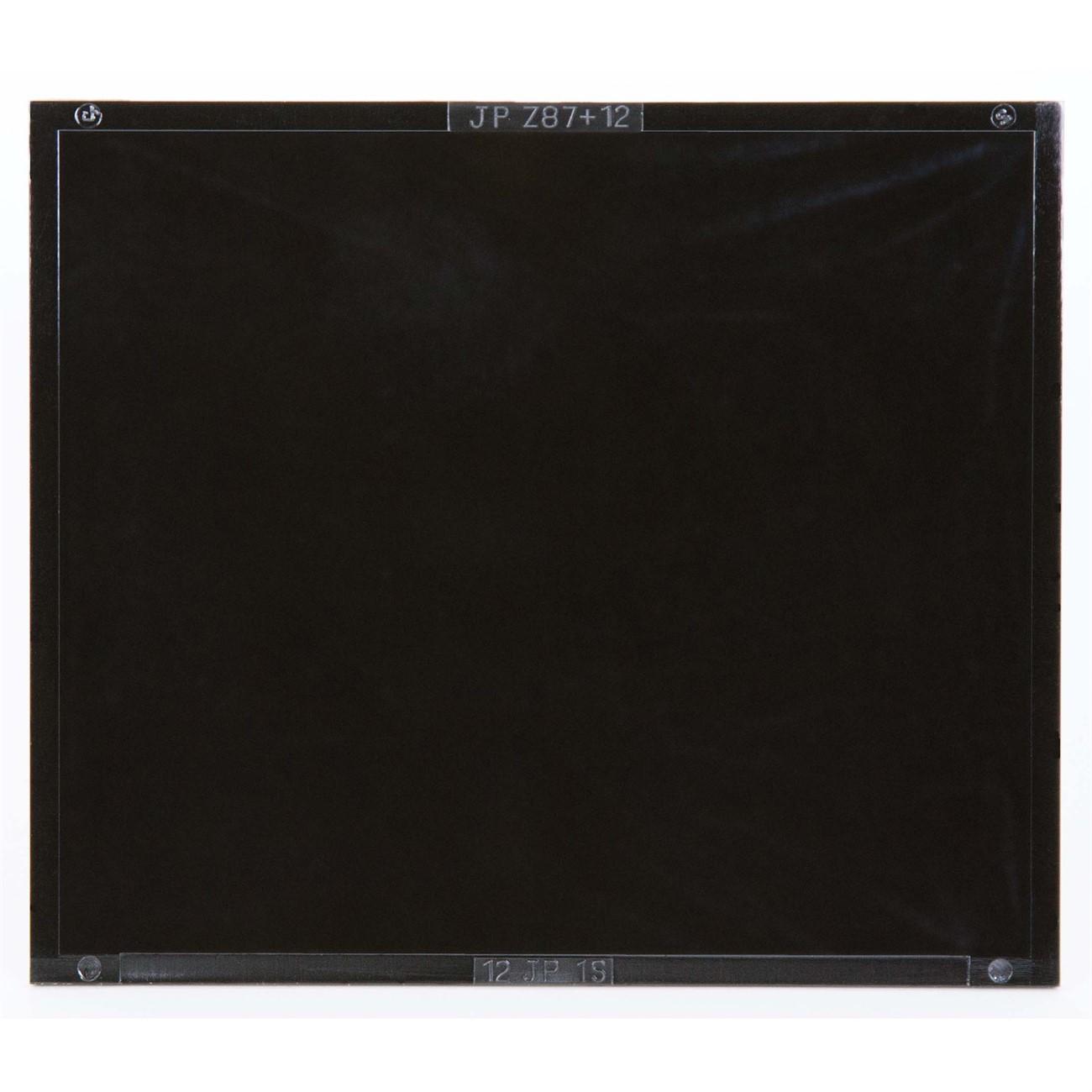

The JACKSON SAFETY 14566 is a passive filter plate designed as a replacement lens component for compatible welding helmets. Built from polycarbonate, this shade 9 filter plate provides arc-flash protection during welding operations by blocking harmful light and radiation at a fixed shade level. It is installed by welding technicians and fabricators who require a reliable, no-battery, non-auto-darkening filter solution. The polycarbonate construction offers impact resistance suitable for the demands of a welding environment. This part is sold individually and is intended for direct replacement in the field.

This filter plate is suited for light to medium welding applications where a shade 9 passive lens meets the required eye protection level. It fits into the W10 and W20 Series passive welding helmets from JACKSON SAFETY. Typical installation scenarios include MIG and TIG welding operations in fabrication shops, manufacturing facilities, and light industrial environments where passive helmet setups are standard practice.

Key Features

• Shade 9 passive filter lens for fixed arc-flash and UV/IR protection
• Polycarbonate construction for impact resistance
• Compatible with W10 and W20 Series passive welding helmets
• Functions as a direct replacement filter plate component
• No batteries or auto-darkening electronics required

Compatibility

Designed for use with JACKSON SAFETY W10 and W20 Series passive welding helmets as a replacement filter plate.

Installation Notes

Installation is performed by the end user or a qualified welding equipment technician. Before replacing the filter plate, ensure the helmet is removed from the operator and all welding equipment is powered down. Follow the helmet manufacturer's lens replacement instructions to seat the filter plate correctly in the lens frame. Verify the shade rating meets applicable ANSI Z87.1 or employer safety requirements before returning the helmet to service.

Technical Specifications

• Lens Type: Passive Filter Plate
• Shade: 9
• Material: Polycarbonate
• Unit of Measure: Each
• Minimum Order Quantity: 25
• UPC: 626053604301

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14566
