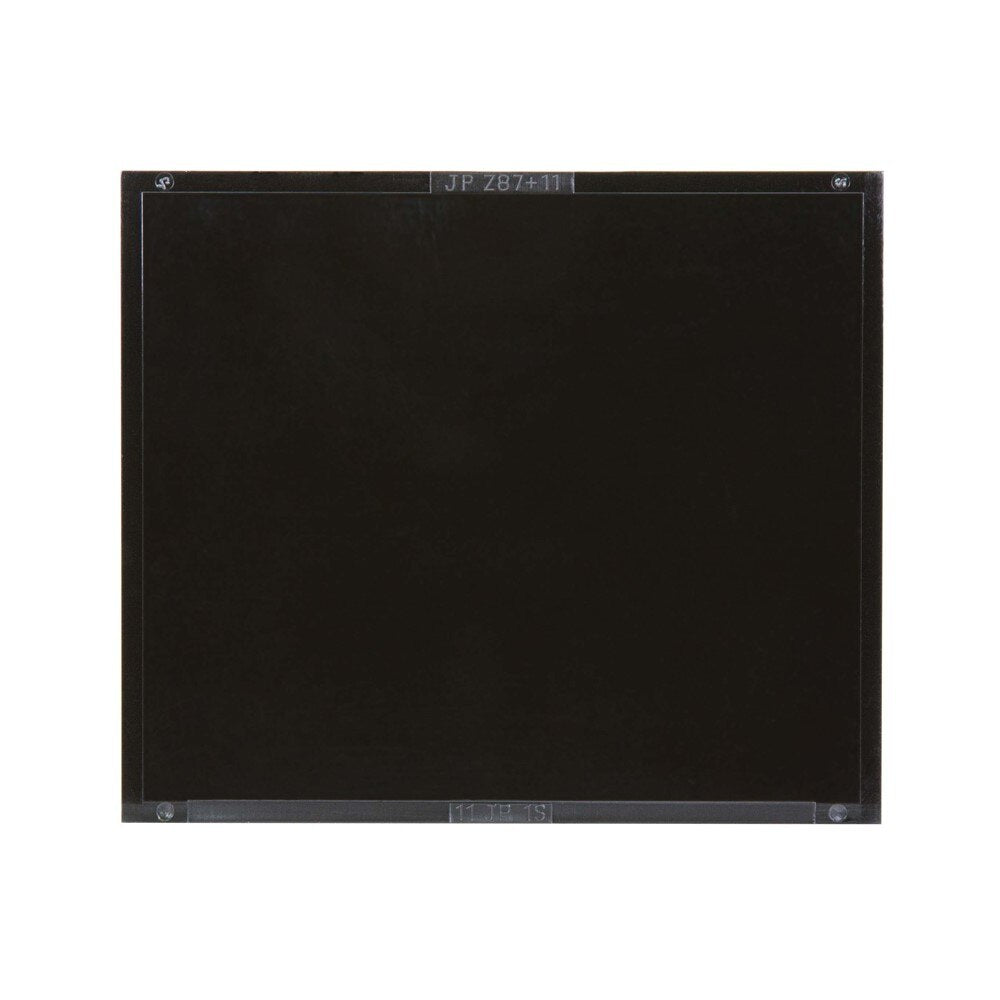

Jackson Safety 14564 Passive Filter Plate Shade 9

Product Description

The JACKSON SAFETY 14564 is a passive filter plate designed for use in welding helmets that require a fixed-shade optical lens. Built from polycarbonate, this filter plate provides shade 9 protection and is engineered to function as a direct replacement or service component in W10 and W20 Series passive welding helmets. Welding supply technicians, safety equipment distributors, and professional welders performing light-duty MIG, TIG, or stick welding applications rely on this lens for consistent arc protection. The polycarbonate construction offers impact resistance suited to the demanding conditions of a welding environment.

This filter plate is intended for passive welding helmets in the W10 and W20 Series product lines. It is sold individually and is compatible with helmets that accept standard passive filter lenses in the appropriate dimensions. Shade 9 is typically selected for lower-amperage welding processes where a lighter shade is required for adequate arc visibility without sacrificing eye protection. Installation is straightforward and does not require special tools.

Key Features

• Shade 9 passive filter lens for fixed-shade arc protection
• Polycarbonate construction provides impact resistance
• Designed for W10 and W20 Series passive welding helmets
• Functions as a filter plate, cover lens, safety plate, or magnifying plate mount component
• Sold as individual unit for single-helmet service or replacement

Compatibility

Designed for use with JACKSON SAFETY W10 and W20 Series passive welding helmets as a replacement or service filter plate.

Installation Notes

Lens replacement should be performed by the helmet user or a qualified safety equipment technician following the helmet manufacturer's service instructions. Ensure the helmet is free of any arc exposure before disassembling the lens assembly. Verify that the replacement filter plate shade is appropriate for the welding process and amperage range being used. Always inspect the installed lens for cracks or damage before resuming welding operations.

Technical Specifications

• Filter Type: Passive
• Shade: 9
• Lens Material: Polycarbonate
• Unit of Measure: Each
• Minimum Order Quantity: 25
• UPC: 626053604295

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14564
