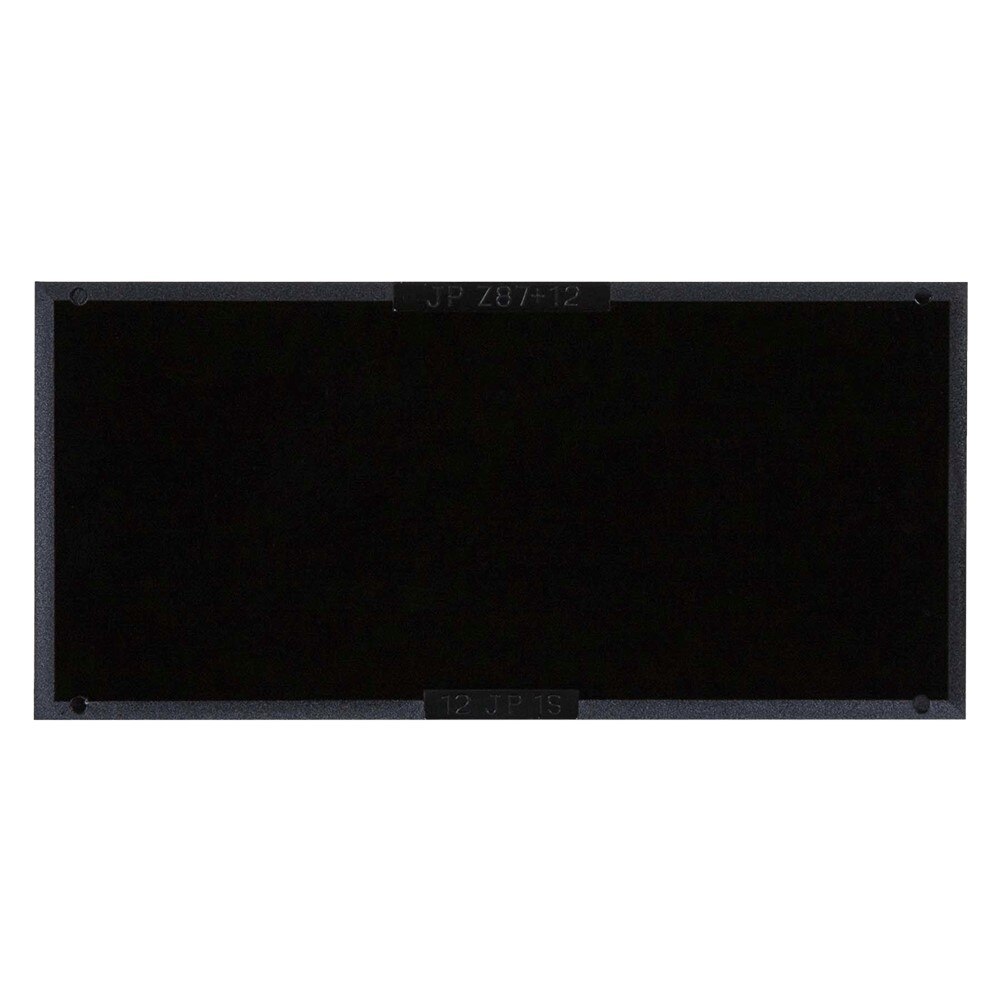

Jackson Safety 14561 Passive Filter Plate Shade 9 Polycarbonate

Product Description

The JACKSON SAFETY 14561 is a shade 9 passive filter plate designed for use in compatible welding helmets. Made from polycarbonate, this filter plate provides optical clarity and impact resistance in active welding environments. It is part of a lens system that includes cover lenses, passive filter lenses, safety plates, and magnifying plates. Installation and replacement are performed by welders or safety equipment technicians maintaining personal protective equipment in industrial and fabrication settings.

This filter plate is suited for applications where a fixed shade 9 optical density is appropriate for the welding process in use. A passive filter plate does not auto-darken — it maintains a constant shade level, making it a straightforward, reliable choice for consistent welding tasks. It fits the W10 and W20 Series passive welding helmets from JACKSON SAFETY.

Key Features

• Shade 9 passive filter lens for fixed optical density during welding
• Polycarbonate construction for impact resistance and optical clarity
• Compatible with W10 and W20 Series passive welding helmets
• Sold individually — part of a broader lens and plate system including cover lenses, safety plates, and magnifying plates

Compatibility

Designed for use with JACKSON SAFETY W10 and W20 Series passive welding helmets.

Installation Notes

Filter plate replacement should be performed with the helmet removed from service and fully powered down if any electronic components are present. Follow the helmet manufacturer's lens replacement procedure to ensure the plate seats correctly in the lens frame. Inspect the filter plate for cracks or discoloration before each use, and replace immediately if optical integrity is compromised. Personal protective equipment service should comply with applicable ANSI Z87.1 standards for eye and face protection.

Technical Specifications

• Filter Type: Passive
• Shade: 9
• Lens Material: Polycarbonate
• Unit of Measure: Each
• Minimum Order Quantity: 25

Standard Information

• Brand: JACKSON SAFETY
• Manufacturer Part Number: 14561
