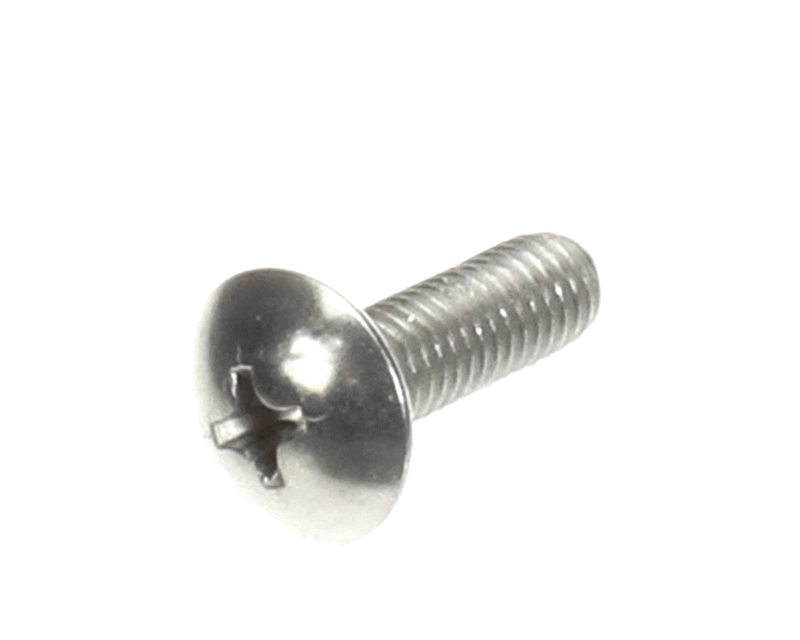

Jackson 5305-003-02-12 Truss Head Screw 10-32 X 5/8

Product Description

The JACKSON 5305-003-02-12 is a 10-32 truss head machine screw measuring 5/8 inch in length. Truss head fasteners feature a wide, low-profile dome head that distributes clamping load across a broader surface area than a standard pan or round head screw. This screw is used in equipment assembly, panel mounting, and component fastening applications where a low head clearance and secure hold are required. Licensed technicians and equipment service professionals install this fastener during assembly, repair, and maintenance work on compatible JACKSON equipment.

This fastener is a direct replacement part for JACKSON equipment service and repair. It is suited for use in commercial and light industrial settings where 10-32 threaded fasteners are specified. The 5/8 inch length accommodates standard panel thicknesses and bracket configurations typical in equipment assemblies. Service technicians stocking common hardware for field repairs will find this screw a practical addition to their replacement parts inventory.

Key Features

• 10-32 thread size for compatibility with standard 10-32 threaded inserts and nuts
• 5/8 inch length suits typical panel and bracket fastening applications
• Truss head profile provides a wide bearing surface and low-profile appearance
• OEM replacement part sourced directly from JACKSON

Compatibility

Designed as an OEM replacement fastener for JACKSON equipment requiring 10-32 x 5/8 inch truss head screws.

Installation Notes

Installation requires a standard Phillips or slotted screwdriver matched to the truss head drive type — verify the drive style before beginning work. Power down and de-energize all equipment before removing or replacing fasteners on electrical enclosures or panels. Use the correct torque to seat the screw firmly without stripping the threads in the mating material. Follow all applicable equipment manufacturer guidelines and relevant service codes during repair work.

Technical Specifications

• Thread Size: 10-32
• Length: 0.625 inches
• Head Style: Truss Head

Standard Information

• Brand: JACKSON
• Manufacturer Part Number: 5305-003-02-12
