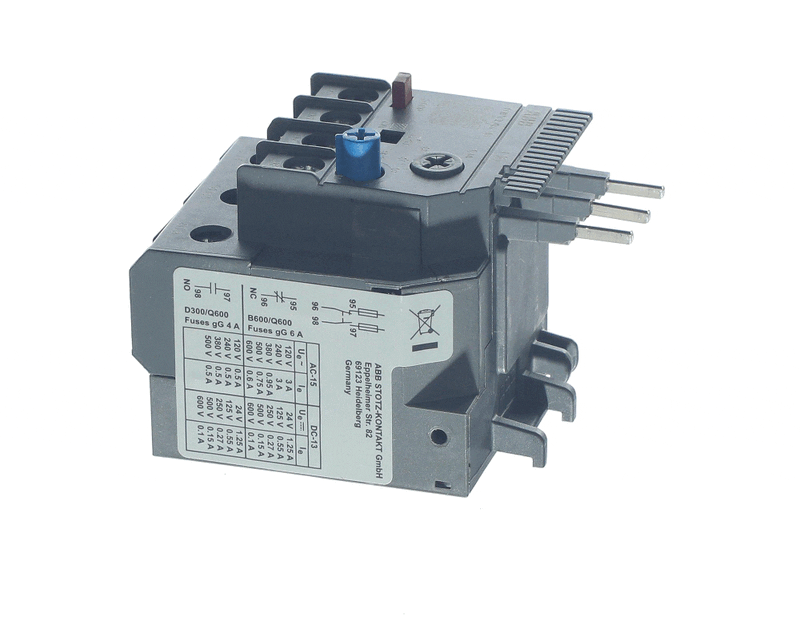

Jackson 50001293 Overload Relay 1.0 to 1.3 Amp

Product Description

The JACKSON 50001293 is a thermal overload relay rated for 1.0 to 1.3 amps, designed to protect motors and electrical circuits in commercial appliance applications from sustained overcurrent conditions. When current draw exceeds the set range, the relay trips the circuit to prevent motor burnout or component damage. This type of protective device is a standard component in commercial warewashing and foodservice equipment, installed by qualified commercial appliance technicians or licensed electricians during service or motor replacement procedures.

This overload relay is intended for use in commercial kitchen equipment where motor protection is required. It is a JACKSON OEM part, making it a direct-fit replacement for failed or damaged overload relays in equipment that originally used this component. The 1.0 to 1.3 amp range suits low-amperage motor circuits common in pump and wash-arm drive assemblies found in commercial dishwashers and similar appliances.

Key Features

• Thermal overload protection rated for 1.0 to 1.3 amp motor circuits
• OEM part for JACKSON commercial appliance equipment
• Trips circuit automatically on sustained overcurrent to protect downstream components
• Direct replacement for failed overload relays in compatible JACKSON equipment

Compatibility

Designed as an OEM-style replacement overload relay for JACKSON commercial appliance equipment requiring a 1.0 to 1.3 amp rated protective device.

Installation Notes

Installation should be performed by a qualified commercial appliance technician or licensed electrician. Disconnect and lock out all power to the equipment before removing or replacing the overload relay. Verify the amp rating of the replacement matches the original specification before energizing the unit. Consult the equipment service manual and applicable electrical codes for proper wiring and mounting procedures.

Technical Specifications

• Current Rating: 1.0 to 1.3 amps
• Device Type: Thermal Overload Relay

Standard Information

• Brand: JACKSON
• Manufacturer Part Number: 50001293
