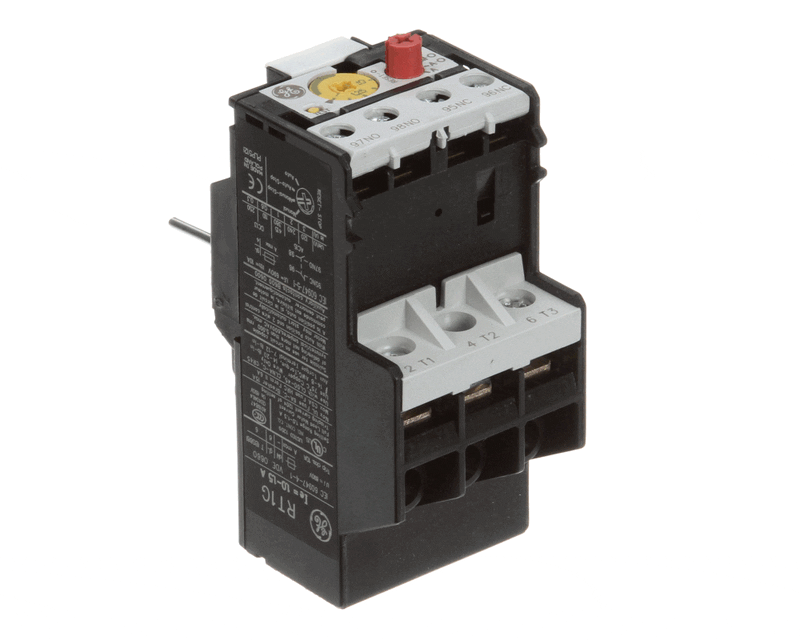

Jackson 05945-111-68-39 Motor Overload Relay

Product Description

The JACKSON 05945-111-68-39 is a motor overload relay designed to protect electric motors from sustained overcurrent conditions. Covering a current range of 1 to 1.5 amps, this overload device monitors motor load and interrupts the circuit when current exceeds the set threshold, preventing motor burnout. It is an OEM replacement part for Jackson commercial warewashing equipment, installed by qualified commercial appliance technicians or commercial kitchen equipment service professionals. The compact form factor — 4 inches long, 3.05 inches wide, and 1.95 inches tall — allows it to fit into tight control compartments typical of undercounter and door-type dishwashers.

This motor overload relay is used in commercial foodservice equipment where motor protection is required for wash pump or drain pump circuits. It is a genuine OEM replacement part, ensuring proper fit and function within the original equipment design. Service technicians replacing a failed or tripped overload that will not reset should confirm the underlying motor load issue before installing this relay to prevent repeat failure.

Key Features

• 1 to 1.5 amp operating range for motor overload protection
• Genuine OEM replacement part for Jackson commercial dishwashing equipment
• Compact dimensions: 4 inches x 3.05 inches x 1.95 inches
• Lightweight at 0.42 pounds for easy handling during service
• Interrupts circuit on sustained overcurrent to prevent motor damage

Compatibility

Designed as a genuine OEM-style replacement motor overload relay for Jackson commercial warewashing equipment requiring a 1 to 1.5 amp overload protection device.

Installation Notes

Installation should be performed by a qualified commercial kitchen equipment technician. Disconnect and lock out all electrical power to the unit before accessing the control compartment or removing the existing overload relay. Verify that the root cause of any previous overload trip — such as a failing motor or mechanical obstruction — has been resolved before installing the replacement. Follow all applicable local electrical codes and the equipment manufacturer's service documentation during installation.
