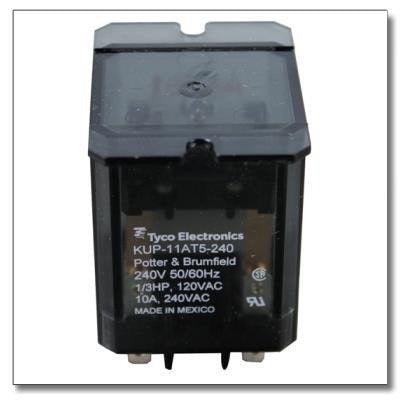

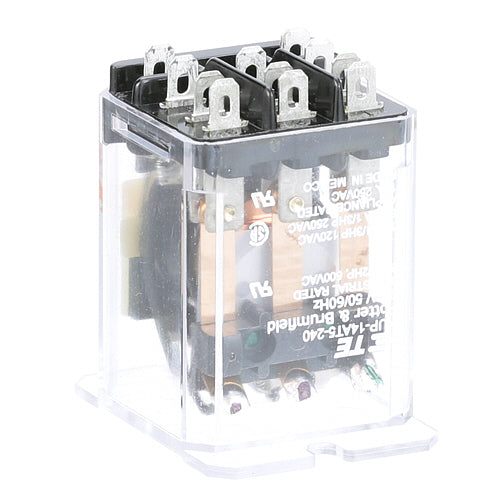

Jackson 05945-111-47-51 Relay Control 240V Top Mount

Product Description

The JACKSON 05945-111-47-51 is a 240-volt top-mount relay control used in commercial warewashing and food service equipment. This relay switches electrical loads under the direction of a control circuit, enabling automated sequencing of wash, rinse, and heat cycles. Rated at 240 volts, it is designed for top-mount installation within the control enclosure of compatible Jackson equipment. Electricians and commercial kitchen service technicians typically handle installation and replacement of this component during preventive maintenance or fault diagnosis.

This relay control is suited for commercial dishwasher and warewashing applications where 240-volt switching is required. It is installed inside the control panel assembly and interfaces with the machine's operational logic to manage cycle timing and load activation. The top-mount configuration allows direct panel mounting without additional brackets in most compatible enclosures.

Key Features

• 240-volt rated control relay for commercial warewashing equipment
• Top-mount design for direct panel installation
• Compact footprint: 2.52 inches x 2.01 inches x 1.50 inches
• Lightweight at 1 pound for easy handling during service calls
• OEM part number ensures fit and function within compatible Jackson equipment

Compatibility

Designed as an OEM-style replacement relay control for compatible JACKSON commercial warewashing equipment requiring a 240-volt top-mount relay.

Installation Notes

Installation should be performed by a qualified electrician or certified commercial appliance service technician. Disconnect and lock out all power to the unit before removing the existing relay or accessing the control enclosure. Verify that the replacement relay matches the voltage rating and mounting orientation of the original before energizing the equipment. Follow applicable NEC guidelines for commercial equipment wiring and service procedures.
