J.w. Winco 6T50A11/E Adjustable Clamping Handle 3/8-16

Product Description

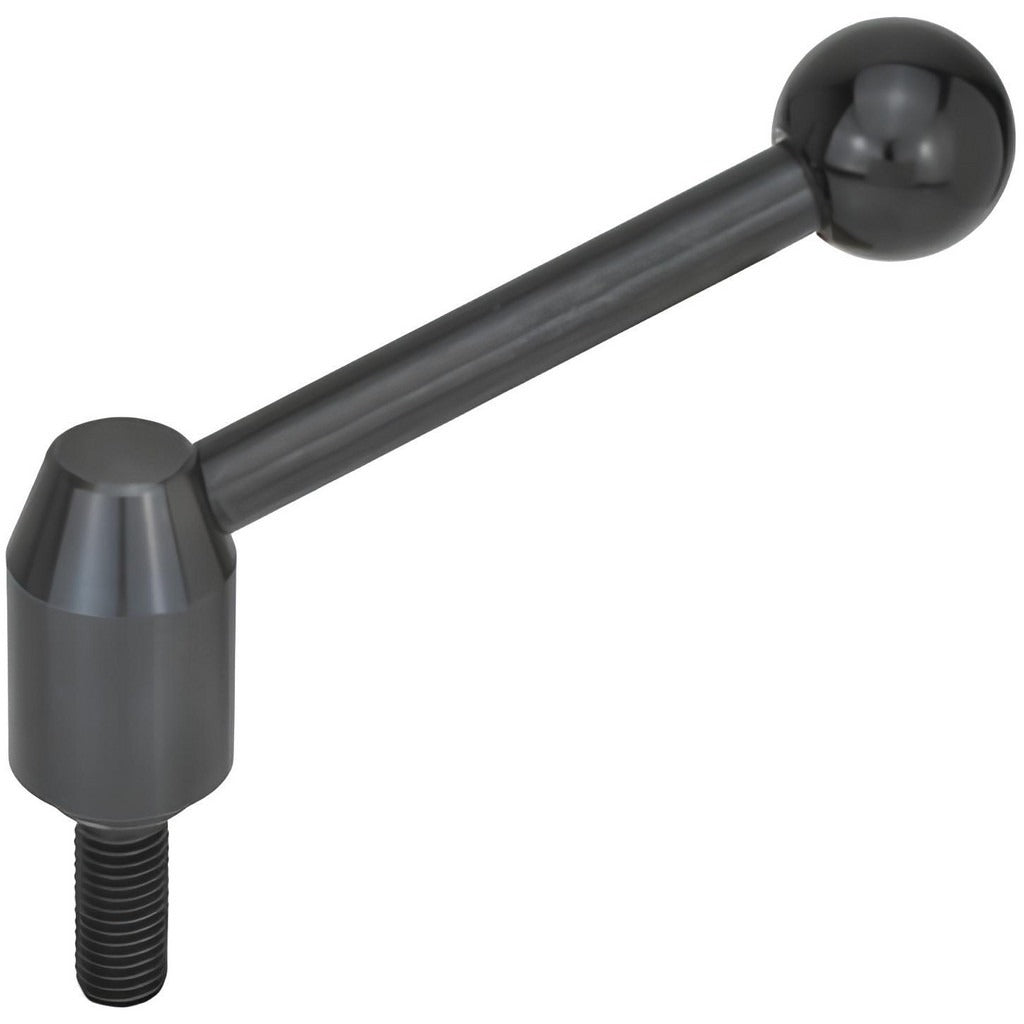

The J.W. WINCO 6T50A11/E is a threaded stud adjustable clamping handle designed for secure, tool-free clamping in industrial and machine-tool applications. The handle body is steel with a black oxide finish and mounts via a 3/8-16 threaded stud that extends 1.97 inches. The ball-end handle arm pivots at a 20-degree angle, allowing the operator to reposition the grip to clear obstructions and apply consistent clamping force. Hub diameter is 0.53 inches and overall body diameter measures 0.83 inches. Knob diameter is 0.79 inches. This part meets DIN 319 standards and is RoHS compliant, making it suitable for regulated equipment environments.

This clamping handle is used on jigs, fixtures, machine guards, access panels, and enclosures in manufacturing, maintenance, and mechanical assembly settings. It is a direct threaded-stud mount, requiring no additional hardware beyond a mating tapped hole. Machinists, millwrights, maintenance technicians, and equipment fabricators install this handle wherever a hand-operable clamp with a short stud projection is required. The black oxide finish provides moderate corrosion resistance in indoor industrial environments.

Key Features

• Adjustable ball-end handle arm with 20-degree pivot angle for obstruction clearance
• 3/8-16 threaded stud mount, 1.97 inches stud length for direct tapped-hole installation
• Steel handle and stud construction with black oxide finish
• Meets DIN 319 standard for clamping handles
• RoHS compliant for use on regulated or exported equipment
• Compact profile: 0.83 inches body diameter, 1.32 inches overall height

Compatibility

Designed as an OEM-style or aftermarket clamping handle for machinery, jigs, fixtures, and enclosures requiring a 3/8-16 threaded stud mount conforming to DIN 319 geometry.

Installation Notes

Installation requires a tapped 3/8-16 hole in the mating component. Thread the stud into the tapped hole by hand and tighten to the required clamping load using standard hand tools. Power down or de-energize any machine before installing or replacing clamping handles on live equipment. Verify thread engagement depth is sufficient to carry the intended clamping load before returning the assembly to service.
