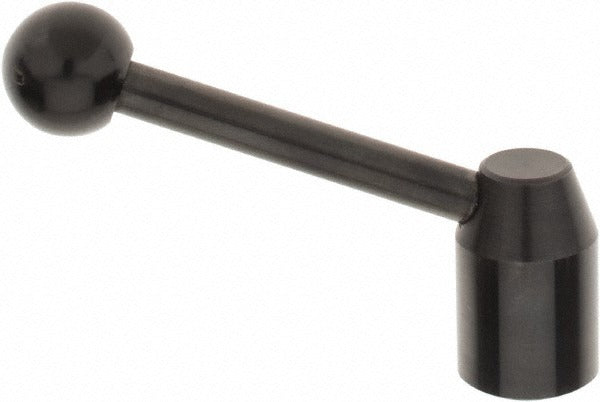

J.w. Winco 5TA11/E Adjustable Clamping Handle 5/16-18

Product Description

The J.W. WINCO 5TA11/E is an adjustable clamping handle with a tapped insert designed for secure, tool-free clamping in industrial and mechanical assemblies. It features a 5/16-18 threaded hole connection, a steel handle arm with a black oxide finish, and a ball end arm style that allows the handle to be repositioned at a 20-degree angle for access in tight spaces. The overall length measures 2.735 inches, and the handle radius length is 2.32 inches. A plastic knob body with a natural finish pairs with the steel arm, keeping weight low while maintaining grip. Licensed trades and industrial maintenance technicians install this type of handle on jigs, fixtures, machine guards, and clamping fixtures.

This handle is suited for use in manufacturing, industrial maintenance, and mechanical assembly applications where hand-operated clamping or positioning is required. The threaded insert design allows it to be installed directly into a tapped hole on equipment panels, fixtures, or machine components. The adjustable arm can be repositioned without tools, making it practical in repetitive-access or space-constrained installations. It is appropriate for both original equipment builds and replacement or retrofit applications on existing machinery.

Key Features

• 5/16-18 threaded hole connection with 0.43-inch threaded depth
• Ball end arm style with 20-degree arm angle for repositioning flexibility
• Steel handle arm with black oxide finish for corrosion resistance
• Plastic knob body in natural finish keeps overall weight low
• Knob diameter of 0.79 inches and hub diameter of 0.53 inches
• RoHS compliant construction

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures, jigs, machine guards, and clamping assemblies that use a 5/16-18 threaded hole mount.

Installation Notes

Installation is performed by mechanical technicians or industrial maintenance personnel. Ensure the mating tapped hole is clean and free of debris before threading the handle in. Do not exceed hand-tightening torque recommendations for the application material. Confirm the arm can rotate freely through its adjustment range after installation without contacting adjacent components.
