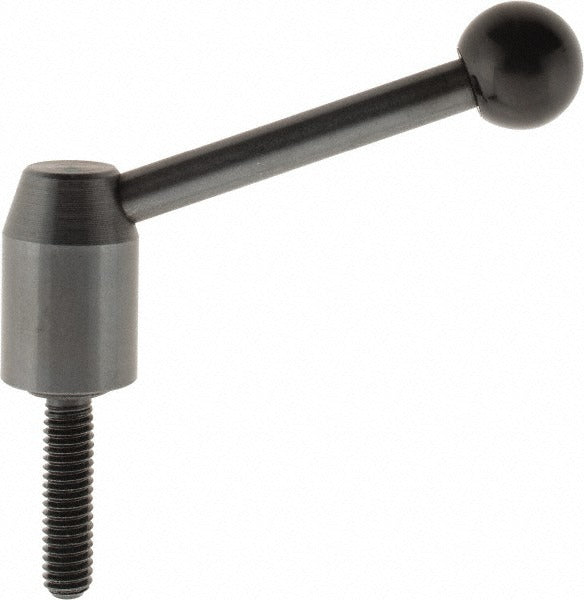

J.w. Winco 5T32A11/E Adjustable Clamping Handle 5/16-18

Product Description

The J.W. WINCO 5T32A11/E is a threaded stud adjustable clamping handle designed for secure, tool-free clamping and positioning in industrial and trade applications. Built with a steel handle and stud finished in black oxide, it provides a firm grip and corrosion resistance in demanding environments. The handle swings on an adjustable arm angled at 20 degrees, allowing repositioning to clear obstructions. Key dimensions include a 2.32-inch handle radius length, a 1.26-inch threaded stud length with a 5/16-18 thread, and an overall length of 2.735 inches. This part meets DIN 319 standards and is RoHS compliant.

The 5T32A11/E is suited for use on machine tools, fixtures, jigs, enclosures, and other equipment where repeated manual adjustment or clamping is required. It is commonly installed in manufacturing, fabrication, and maintenance settings where operators need to lock and unlock components quickly without reaching for a wrench. The ball-end arm style and black oxide finish make it a practical choice for both light industrial and heavy-use environments. Installers in HVAC, electrical, and general mechanical trades use handles of this type to secure access panels, guards, and adjustable assemblies.

Key Features

• 5/16-18 threaded stud for direct thread-in mounting without additional hardware
• Adjustable ball-end handle arm positioned at 20 degrees for clearance in tight spaces
• Steel handle and stud with black oxide finish for durability and corrosion resistance
• DIN 319 compliant construction for consistent dimensional fit with standard hardware
• RoHS compliant materials suitable for environmentally regulated applications
• Compact hub diameter of 0.53 inches and body diameter of 0.83 inches for low-profile installation

Compatibility

Designed as an OEM-style replacement or direct-fit clamping handle for equipment using 5/16-18 threaded stud mounting points conforming to DIN 319 dimensional standards.

Installation Notes

Thread the stud into a pre-tapped 5/16-18 hole by hand, then tighten to the appropriate snug fit for the application. Power down or de-energize any equipment before servicing panels or guards secured by this handle. No special tools are required for installation, though a wrench applied to the stud flats may be used to achieve a firm seat. Inspect thread engagement before placing the assembly back into service.
