J.w. Winco 20N80A15/E Adjustable Clamping Handle M20x2.5

Product Description

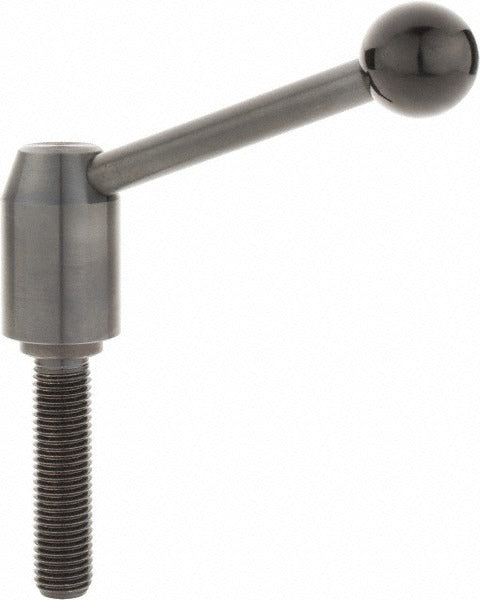

The J.W. WINCO 20N80A15/E is a metric adjustable clamping handle with a threaded stud mount, designed for secure mechanical clamping and positioning in industrial and machine-tool applications. The handle features a ball-end arm style set at a 20-degree angle, allowing repositioning to clear obstructions during operation. The steel stud measures M20x2.5 with an 80 mm threaded length, and the steel handle arm spans 118 mm in radius length. The overall assembly height is 68 mm. Black oxide finish on both the stud and handle arm provides corrosion resistance in shop environments. Installation is performed by maintenance technicians and machine builders working to metric fastener standards.

This clamping handle is suited for use on industrial machinery, jigs, fixtures, and clamping assemblies where frequent manual adjustment is required. The threaded stud connection allows direct installation into tapped metric holes. The adjustable arm can be repositioned without removing the handle from the stud, which reduces downtime on production equipment. The plastic body and steel stud construction balance weight with durability across light to medium-duty clamping applications in manufacturing, automation, and fabrication environments.

Key Features

• Adjustable ball-end arm style allows repositioning at 20-degree angle increments without removing handle from stud
• M20x2.5 steel threaded stud with 80 mm threaded length for direct installation into metric tapped holes
• 118 mm handle radius length provides leverage for hand-tightening in clamping and positioning applications
• Black oxide finish on handle and stud components for corrosion resistance in industrial environments
• 28 mm hub diameter and 40 mm body diameter in a compact 68 mm overall height assembly
• Plastic body construction reduces overall handle weight while maintaining structural integrity for manual clamping loads

Compatibility

Designed as a direct-fit threaded stud clamping handle for equipment and fixtures with M20x2.5 tapped metric mounting holes requiring manual adjustable clamping handles.

Installation Notes

Installation is performed by maintenance technicians or machine builders familiar with metric fastener standards. Ensure the receiving tapped hole is clean and free of debris before threading in the stud. De-energize and lock out any machinery before installing or repositioning this handle on active equipment. Do not exceed the manual clamping load capacity appropriate for the M20 thread size and the plastic body components.
