J.w. Winco 10TA14/E Adjustable Clamping Handle 5/8-11

Product Description

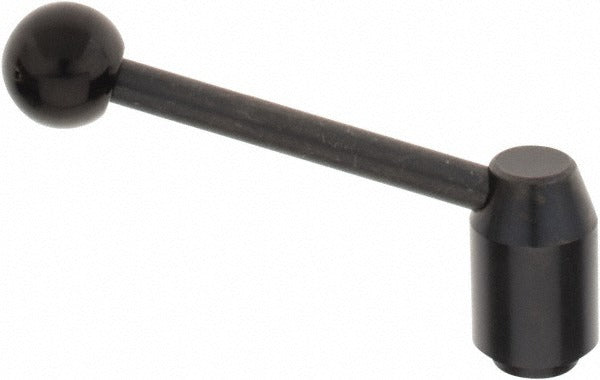

The J.W. WINCO 10TA14/E is a tapped insert adjustable clamping handle designed for secure, tool-free clamping and positioning in industrial and mechanical applications. The handle features a 5/8-11 threaded hole mount with a threaded depth of 0.87 inches and a hub diameter of 0.91 inches. The steel handle arm measures 3.96 inches in radius length and uses a black oxide finish for corrosion resistance. The body is 1.30 inches in diameter and stands 2.17 inches tall. A plastic knob component with a diameter of 1.26 inches completes the assembly. Licensed trades and machine technicians install this handle type on fixtures, jigs, clamps, and equipment panels.

This adjustable clamping handle is suited for use on production machinery, tooling fixtures, and mechanical assemblies where hand-tightening and quick repositioning are required. The 20-degree handle arm angle allows ergonomic access in tight mounting locations. The threaded insert design makes it compatible with standard machined components and fabricated assemblies that use 5/8-11 threaded bossing. It is appropriate for both light industrial and precision tooling environments.

Key Features

• 5/8-11 threaded hole mount with 0.87 inch threaded depth for secure engagement
• Steel handle arm with black oxide finish for durability and corrosion resistance
• Ball end handle arm style at a 20-degree angle for ergonomic hand operation
• Plastic knob body at 1.26 inches diameter with natural finish
• Overall height of 2.17 inches and body diameter of 1.30 inches for compact fitment
• RoHS compliant construction

Compatibility

Designed as a standard tapped insert adjustable clamping handle for mechanical assemblies, jigs, fixtures, and equipment panels using a 5/8-11 threaded interface.

Installation Notes

Installation is performed by threading the handle directly into a 5/8-11 tapped hole on the host component. Ensure the mating thread is clean and free of debris before installation. De-energize and lock out any machinery before servicing or replacing clamping hardware on live equipment. Do not exceed the hand-tightening torque appropriate for the host material to avoid thread damage.
