J.w. Winco 10T63A14/E Adjustable Clamping Handle 5/8-11

Product Description

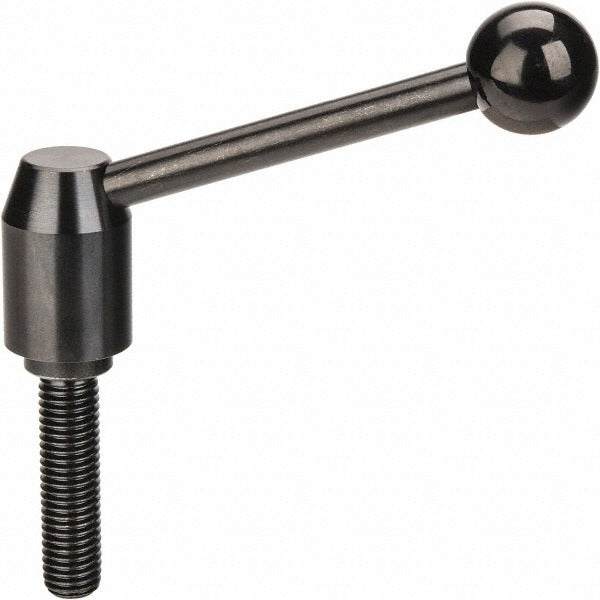

The J.W. WINCO 10T63A14/E is an inch-size adjustable clamping handle with a threaded stud mount, designed for secure manual clamping in industrial and mechanical fixture applications. The handle features a ball-end arm style set at a 20-degree angle, allowing repositioning to clear obstructions during operation. The stud is 5/8-11 thread with a 2.48-inch threaded length. Handle and stud components are steel with a black oxide finish, while the body is plastic. Overall length is 4.61 inches. Licensed maintenance technicians, machine operators, and industrial assembly professionals typically install and adjust this type of hardware.

This adjustable clamping handle is suited for use on jigs, fixtures, machine guards, and equipment panels where frequent manual adjustment is needed. The 20-degree arm angle provides clearance in tight mounting locations. The threaded stud configuration allows direct installation into tapped holes on machine frames, brackets, or panels. With a handle radius length of 3.96 inches and an overall height of 2.17 inches, this handle is a practical fit for a range of light-to-medium duty clamping tasks in manufacturing, maintenance, and industrial assembly environments.

Key Features

• 5/8-11 threaded stud with 2.48-inch threaded engagement length
• Adjustable ball-end arm at 20-degree angle for repositioning around obstructions
• Steel handle and stud components with black oxide finish for corrosion resistance
• Plastic body with 1.30-inch body diameter and 2.17-inch body height
• Handle radius length of 3.96 inches for positive grip leverage
• Knob diameter of 1.26 inches with 0.91-inch base diameter for stable mounting

Compatibility

Designed as a direct-fit replacement or new-installation adjustable clamping handle for machinery, fixtures, and equipment panels accepting a 5/8-11 threaded stud mount.

Installation Notes

Installation is performed by threading the stud directly into a pre-tapped 5/8-11 hole on the target fixture or machine frame. Disengage or lock out any powered equipment before installing or adjusting clamping hardware on active machinery. Use appropriate hand tools to achieve snug engagement without over-torquing the stud into the receiving threads. Verify the arm angle adjustment is locked in the desired position before returning equipment to service.
