J.w. Winco 10T40A14/E Adjustable Clamping Handle 5/8-11

Product Description

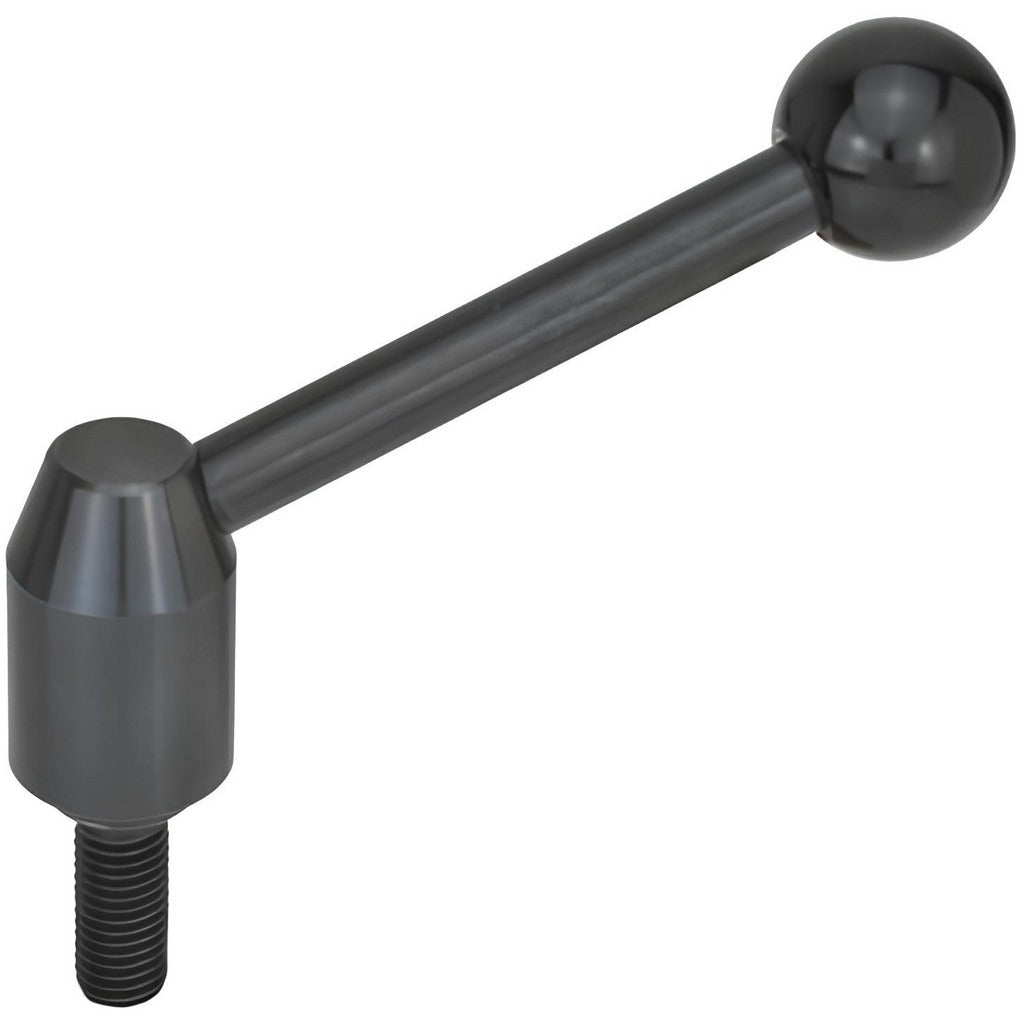

The J.W. WINCO 10T40A14/E is an inch-size adjustable clamping handle with a threaded stud mount, designed for securing and positioning components in industrial and mechanical assemblies. The handle features a 5/8-11 threaded stud with a stud length of 1.57 inches, a steel handle arm measuring 3.96 inches in radius length, and an overall length of 4.61 inches. The body and knob are constructed from plastic with a black oxide finish, while the stud is steel. The arm is set at a 20-degree angle with a ball-end style, providing ergonomic grip and controlled clamping force in tight or angled mounting positions. Installed by machinists, maintenance technicians, and mechanical assemblers.

This clamping handle is suited for use in machine tool fixtures, jigs, workholding equipment, and general industrial machinery where hand-operated clamping and quick-release adjustability are required. The threaded stud configuration allows direct installation into tapped holes, making it a practical choice for OEM equipment builds and field maintenance applications. Typical use cases include clamping guards, covers, and adjustable components on production equipment and industrial frames.

Key Features

• 5/8-11 threaded stud for direct installation into standard tapped holes
• Adjustable handle arm set at 20 degrees for ergonomic positioning in confined spaces
• Ball-end arm style provides a secure grip surface during hand tightening
• Steel stud and handle arm with black oxide finish for corrosion resistance
• Plastic body and knob construction reduces weight while maintaining durability
• Overall length of 4.61 inches with a handle radius of 3.96 inches for adequate leverage

Compatibility

Designed as a direct-fit replacement or OEM-style clamping handle for industrial machinery, fixtures, and equipment using a standard 5/8-11 threaded stud mount configuration.

Installation Notes

Installation is performed by hand or with standard mechanical hand tools into a pre-tapped 5/8-11 hole. Ensure the mating threaded bore is clean and free of debris before threading in the stud. Power down and de-energize any associated equipment before servicing or replacing clamping hardware on live machinery. Do not exceed the handle design clamping load by using pipe extensions or mechanical leverage aids on the arm.
