J.w. Winco 10N63A11/E Adjustable Clamping Handle M10x1.5

Product Description

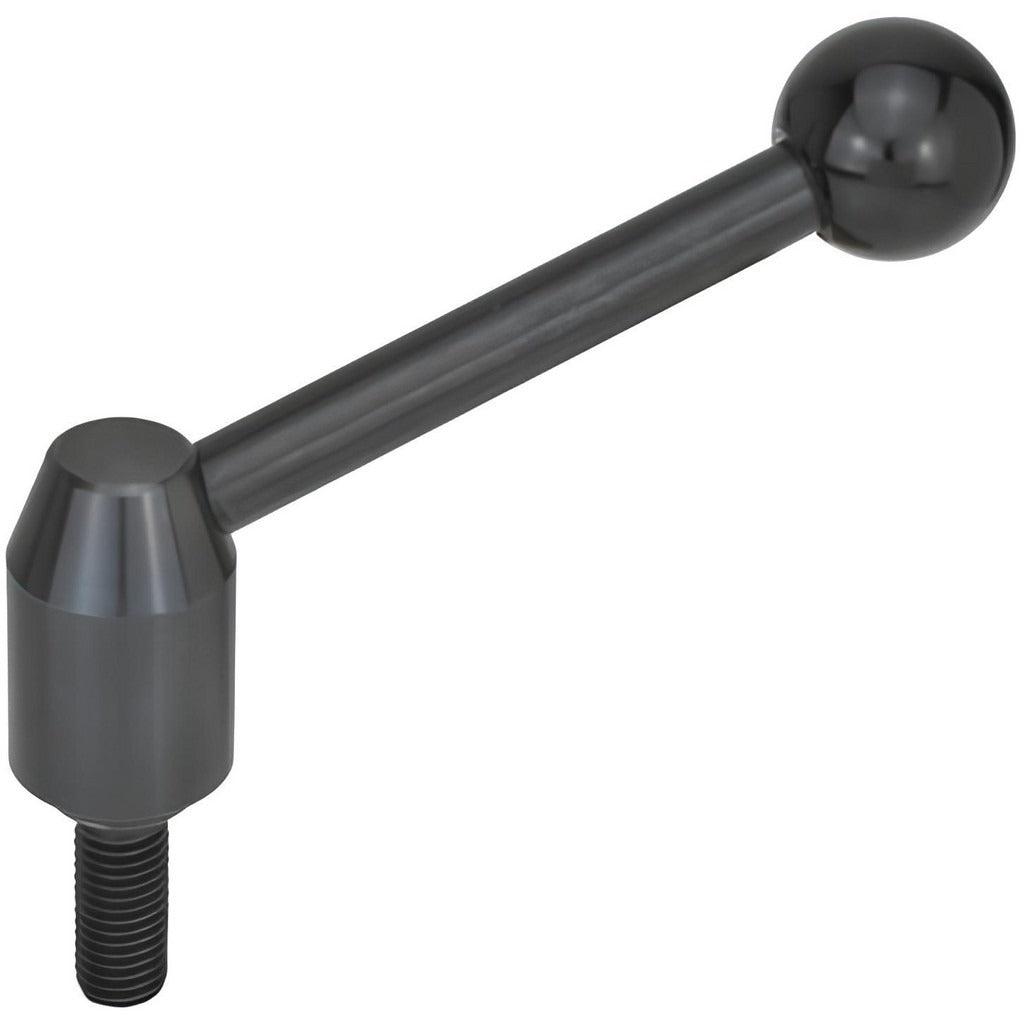

The J.W. WINCO 10N63A11/E is a metric-size threaded stud adjustable clamping handle designed for secure, tool-free clamping in industrial and mechanical assemblies. The handle features a steel stud with an M10x1.5 thread and a 63 mm stud length, paired with a black oxide-finished steel body and a black plastic handle arm. The overall length measures 69.5 mm and the body stands 33.5 mm high. The 20-degree handle arm angle and ball-end arm style allow the handle to be repositioned to clear obstructions during tightening, making it practical for confined or frequently adjusted setups. Machinists, toolmakers, fixture builders, and maintenance technicians are the primary installers of this component.

This clamping handle is suited for use on jigs, fixtures, machine guards, enclosures, and work-holding assemblies where repeated manual adjustment is required. The threaded stud mount style allows direct installation into tapped holes without additional hardware. With a hub diameter of 13.5 mm and a knob diameter of 20 mm, the handle provides a compact footprint appropriate for moderate-duty clamping on production equipment, test fixtures, and tooling plates in both light manufacturing and maintenance environments.

Key Features

• M10x1.5 threaded stud with 63 mm stud length for direct installation into tapped metric holes
• Adjustable 20-degree ball-end handle arm repositions to avoid obstructions during clamping
• Steel stud and body with black oxide finish for corrosion resistance in shop environments
• Black plastic handle arm provides a comfortable grip without tools
• Compact hub diameter of 13.5 mm and body diameter of 21 mm for tight-clearance applications
• Overall length of 69.5 mm and body height of 33.5 mm for predictable fitment in fixture designs

Compatibility

Designed as an OEM-style replacement or direct-fit component for industrial fixtures, jigs, and machine assemblies that require a metric M10x1.5 threaded stud adjustable clamping handle.

Installation Notes

Installation is performed by machinists or maintenance technicians using standard hand tools. Thread the stud into a properly tapped M10x1.5 hole and torque by hand or with a wrench applied to the stud flats only. De-energize or lock out any machine before servicing clamping hardware on live equipment. Verify thread engagement depth matches the stud length to avoid bottoming out in blind holes.
