J.w. Winco 10N32A11/E Adjustable Clamping Handle M10x1.5

Product Description

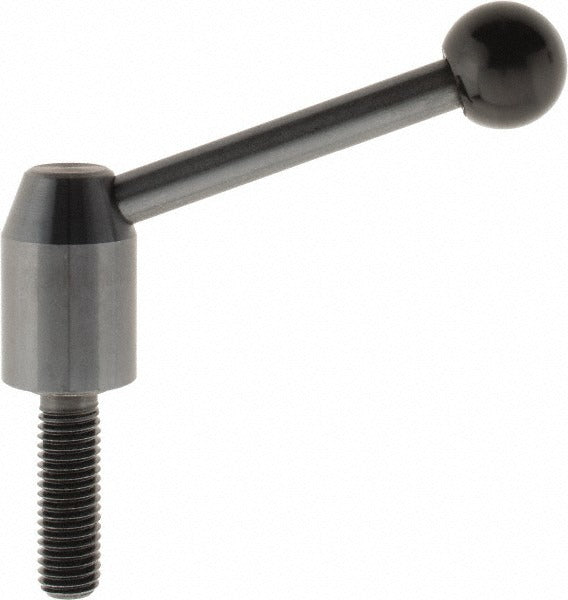

The J.W. WINCO 10N32A11/E is a metric threaded stud adjustable clamping handle designed for secure, tool-free clamping in machine tool, fixture, and industrial equipment applications. The handle features a steel stud with an M10x1.5 thread and a black oxide finish on both the steel stud and handle arm. The body is made of black-oxide-coated steel with a plastic handle arm terminating in a ball end. Overall length is approximately 69.5 mm (2.74 inches) and overall height is 33.5 mm (1.32 inches). The 20-degree handle arm angle allows repositioning to clear obstructions during tightening.

This clamping handle is suited for use on jigs, fixtures, machine guards, and enclosure panels where repeated manual adjustment is required. The adjustable handle arm swings to a clear position before tightening, making it practical in tight or recessed mounting locations. Typical installers include machine builders, maintenance technicians, and fixture designers working in light industrial and manufacturing environments. The threaded stud mount allows direct installation into tapped holes without additional hardware.

Key Features

• M10x1.5 threaded stud with 32 mm stud length for direct installation into tapped holes
• Adjustable ball-end handle arm set at a 20-degree angle for clearance during operation
• Black oxide finish on steel components for corrosion resistance in indoor industrial use
• 13.5 mm hub diameter with 21 mm body diameter for a compact mounting footprint
• Plastic handle arm reduces operator fatigue during frequent manual adjustments
• No tools required for routine clamping and release operations

Compatibility

Designed as an OEM-style replacement or aftermarket clamping handle for fixtures, machine tools, and industrial equipment using M10x1.5 threaded stud mounting points.

Installation Notes

Installation is performed by threading the stud directly into a prepared M10x1.5 tapped hole. De-energize and lock out any machine before installing or replacing clamping hardware on live equipment. Verify thread engagement depth against the 32 mm stud length to ensure adequate hold. Do not exceed the torque capacity of the plastic handle arm by using additional leverage tools.
