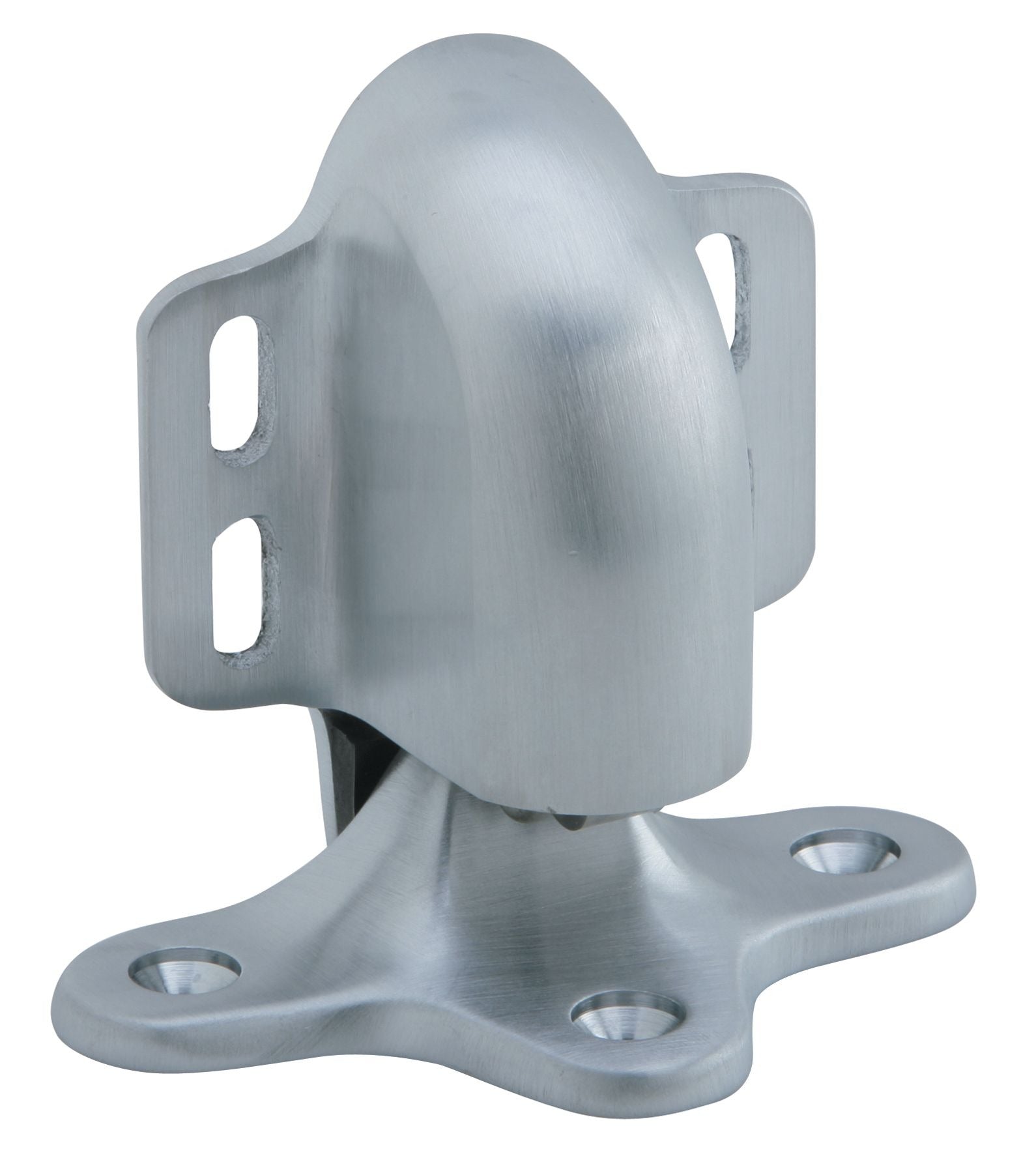

Ives FS4226D Auto Floor Stop and Holder Satin Chrome

Product Description

The IVES FS4226D is an automatic floor stop and holder designed to control door swing and hold doors open at floor level. It mounts flush to the floor and engages the door automatically, making it suitable for high-traffic commercial and institutional doorways where a reliable, low-profile stop is required. The FS4226D accommodates door bottom clearances from 1-1/8 inches to 1-9/16 inches and is finished in satin chrome for a clean, architectural appearance. Licensed locksmiths, door hardware installers, and general contractors typically handle installation of this type of hardware in new construction and renovation projects.

This floor stop and holder is appropriate for interior doors in commercial, institutional, and residential applications where door swing control and hold-open functionality are both needed from a single floor-mounted device. The satin chrome finish coordinates with a wide range of architectural hardware finishes. It is sold individually and is suited for installation on wood or concrete subfloor surfaces depending on fastener selection.

Key Features

• Automatic hold-open mechanism controls door swing and keeps door in open position
• Accommodates door bottom clearances from 1-1/8 inches to 1-9/16 inches
• Satin chrome finish suits commercial and architectural interior applications
• Low-profile floor-mount design minimizes trip hazard
• Compact footprint: 5.5 inches long by 5 inches wide by 2.5 inches tall

Compatibility

Designed as an OEM-style floor stop and holder for interior doors with a bottom clearance between 1-1/8 inches and 1-9/16 inches in residential and commercial applications.

Installation Notes

Installation is typically performed by a door hardware installer or licensed contractor. The door must be in the closed position and the floor surface clear before marking fastener locations. Fastener type should be selected based on subfloor material, whether concrete or wood. Verify door bottom clearance falls within the 1-1/8 inch to 1-9/16 inch specified range before mounting.
