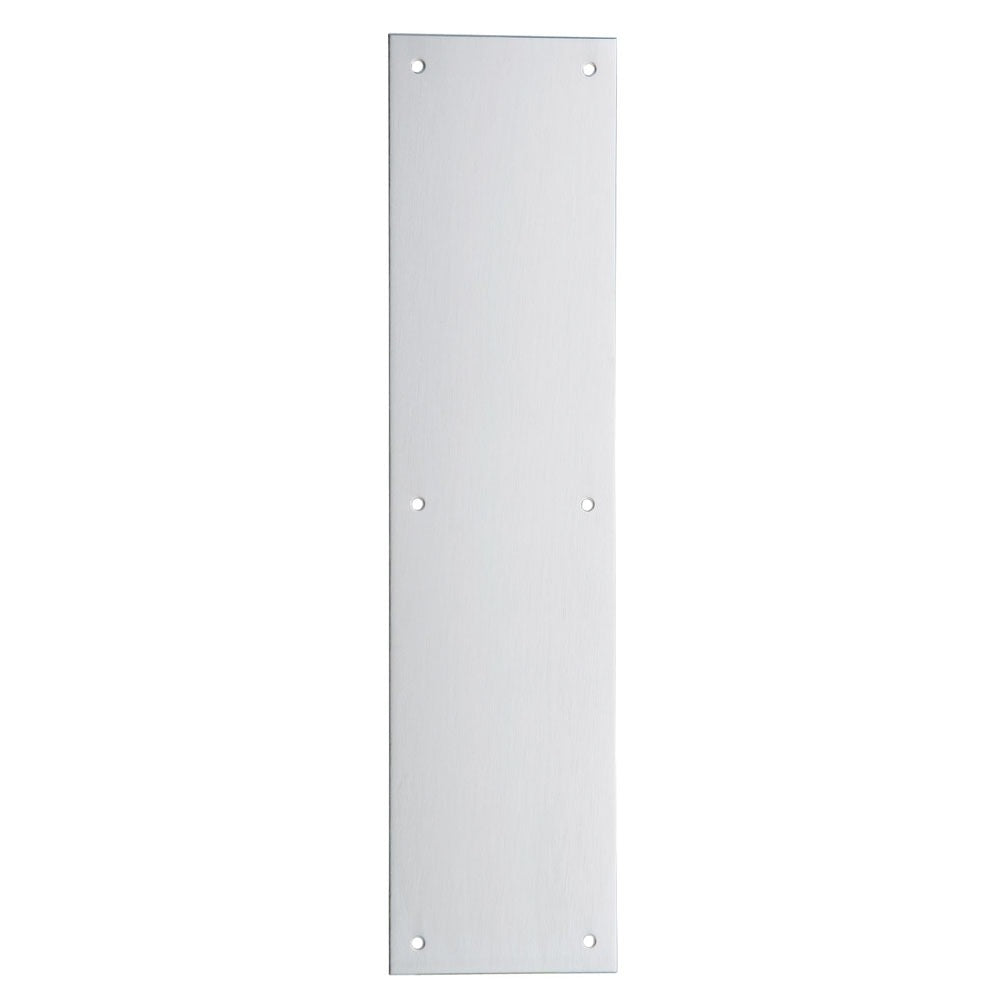

Ives 8200 US26D 8x16 Push Plate (8 x 16)

Product Description

Ives 8200 US26D 8x16 is an 8 x 16 push plate intended for commercial doors to protect surfaces and provide a defined push area for high-traffic applications. Constructed of brass with a satin chrome finish (US26D), the plate is .050 inch thick and is available in brass, bronze, aluminum or 300 series stainless steel. The product meets ANSI A156.6 for J301 material and is ANSI/BHMA certified; standard mounting hardware is included.

• Dimensions and thickness: 8 x 16 inches; 0.050 inch nominal thickness.
• Material and finish: Brass construction with satin chrome finish (US26D); also available in bronze, aluminum, or 300 series stainless steel.
• Standards and mounting: Meets ANSI A156.6 for J301 material and ANSI/BHMA certification; includes #6 x 5/8 inch oval head screws.

Product Highlights

Commercial-grade 8 x 16 push plate, .050 inch thick, satin chrome finish (US26D), ANSI/BHMA certified.

Product Information

Standard Information

• Brand: IVES
• Manufacturer Part Number: 8200 US26D 8X16
