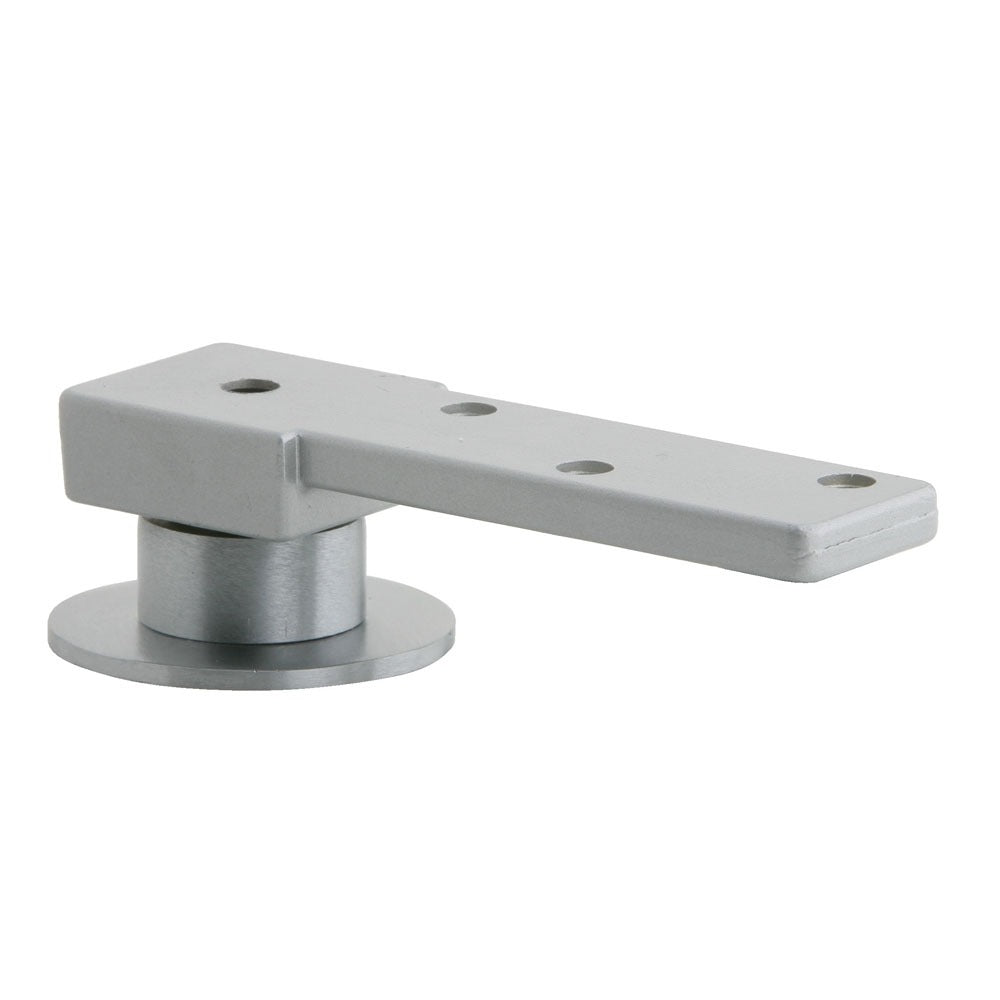

Ives 7253 BTM US26D Bottom pivot hinge 1-1/2 in center hung

Product Description

Ives 7253 BTM US26D is a cast brass bottom pivot hinge with a satin chrome (US26D) finish for center-hung commercial doors. It provides a 1-1/2 in pivot mounting, 180° swing range, and supports up to 300 lb. The component includes fasteners and a hinge pin, offers 3/16 in to 3/4 in floor-to-door clearance with 3/16 in vertical adjustment, and is non-handed. It meets ANSI/BHMA A156.4 and is UL listed for 20-minute fire doors.

• Cast brass construction with satin chrome (US26D) finish; non-handed center-hung bottom pivot
• 1-1/2 in pivot size, 180° range of motion, supports up to 300 lb
• Adjustable floor-to-door clearance 3/16 in to 3/4 in; 3/16 in vertical adjustment with positive locking; includes fasteners and hinge pin

Product Highlights

Center-hung bottom pivot, 1-1/2 in pivot, 300 lb capacity; ANSI/BHMA A156.4 and UL 20-minute listed

Product Information

Standard Information

• Brand: IVES
• Manufacturer Part Number: 7253 BTM US26D
• Country of Origin: Canada
