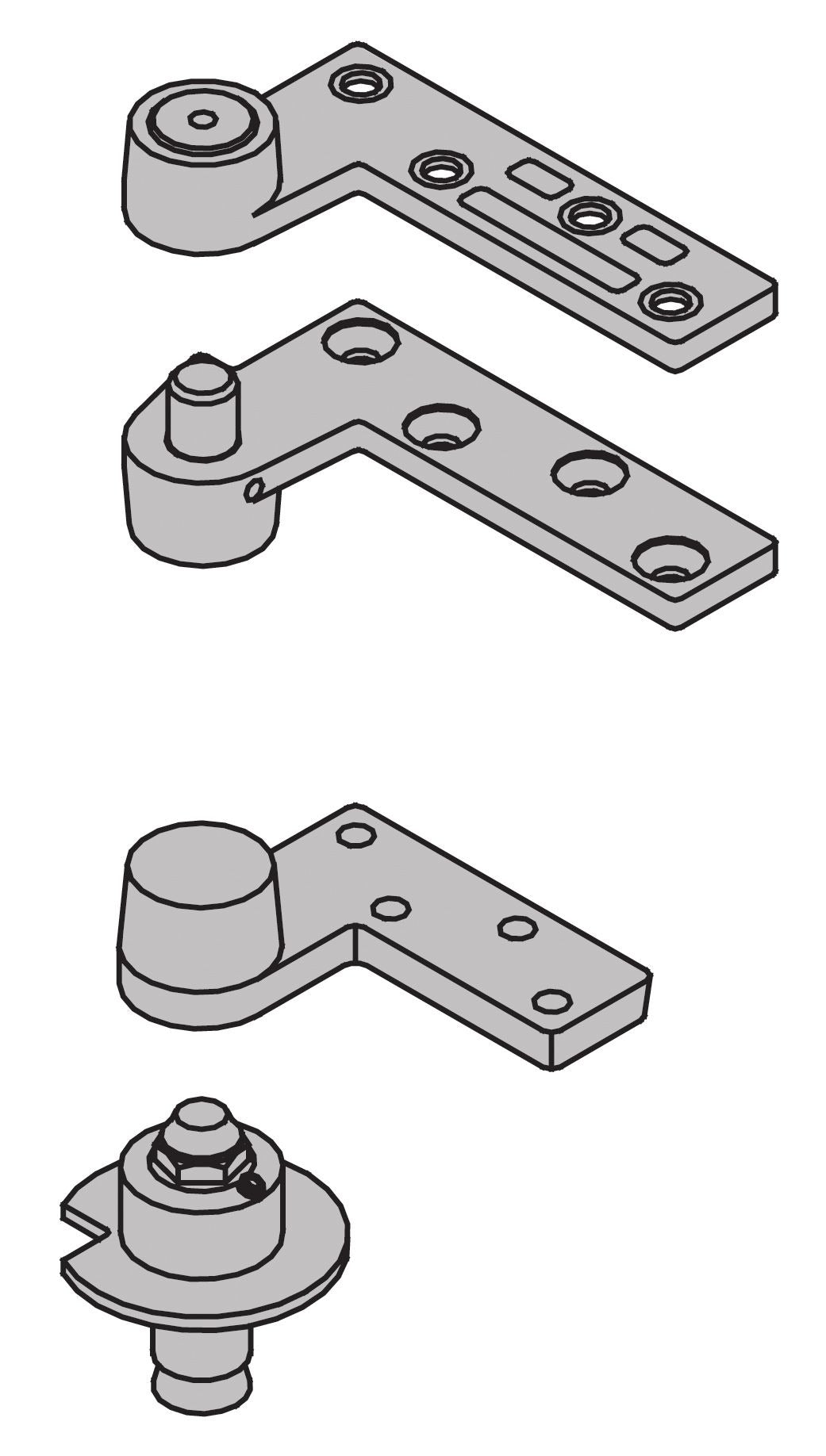

Ives 7222SET26DRH Offset Base Plate Pivot Set Satin Chrome

Product Description

The IVES 7222SET26DRH is a right-hand offset base plate pivot set designed for commercial and residential door applications where a standard full-mortise pivot is not practical. The set uses a 3/4 inch offset base plate configuration to accommodate door frames that require lateral adjustment at the pivot point. Rated at 200 pounds, this pivot set handles heavy-duty door loads found in high-traffic entryways. The Satin Chrome finish provides a clean, professional appearance consistent with standard architectural hardware specifications. Licensed door hardware technicians and commercial finish carpenters are the typical installers.

This pivot set is suited for interior and exterior door assemblies where offset pivot mounting is specified by the project architect or door hardware consultant. The right-hand configuration must match the hand of the door as determined during door hardware scheduling. It is commonly installed on wood or hollow metal doors in commercial tenant improvement, hospitality, and institutional construction. The unit ships as a complete set, sold individually.

Key Features

• Right-hand offset configuration with 3/4 inch base plate offset
• 200-pound load rating supports heavy commercial door assemblies
• Satin Chrome finish coordinates with standard architectural hardware schedules
• Complete pivot set supplied as a single unit — no additional hardware required
• Compact profile: 6.2 inches long, 2.8 inches wide, 2.7 inches tall

Compatibility

Designed as an OEM-style replacement or new-installation pivot set for right-hand door assemblies requiring a 3/4 inch offset base plate pivot configuration.

Installation Notes

Installation should be performed by a qualified door hardware installer or finish carpenter familiar with pivot door hardware. Verify door hand and swing direction before beginning installation to confirm the right-hand configuration is correct for the opening. Ensure the door is fully supported and the frame is plumb and square before securing the pivot plates. Follow applicable building codes and the door manufacturer's hardware preparation specifications for mortise or surface-mount details.
