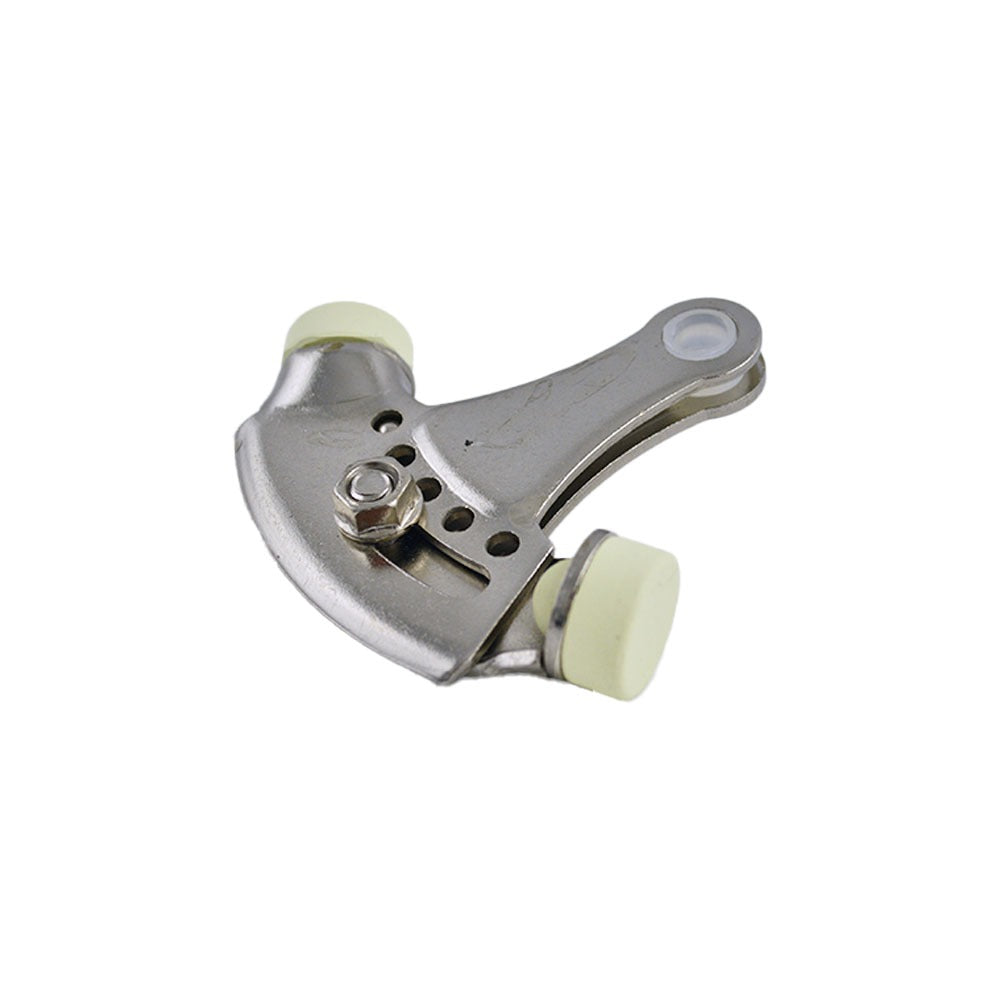

Ives 69F15 Hinge Pin Door Stop Satin Nickel

Product Description

The IVES 69F15 is a hinge pin door stop designed to limit door travel and protect walls, baseboards, and door frames from impact damage. It installs directly into the hinge pin barrel, requiring no additional drilling or wall anchors. The stop is constructed of steel with a satin nickel finish, making it suitable for interior residential and light commercial doors. At 0.03 pounds, the unit is compact and unobtrusive. This type of hardware is typically installed by finish carpenters, general contractors, or building maintenance staff during door hardware installation or retrofit work.

The IVES 69F15 is used on standard interior doors where a low-profile door stop solution is preferred. The hinge pin mount style works with most standard residential hinges and eliminates wall or floor surface damage from conventional stop mounting. It is well suited for retrofit applications where existing doors need stop hardware added without new fastener penetrations in finished surfaces. Typical installations include bedroom doors, closet doors, and office interior doors in both residential and light commercial settings.

Key Features

• Hinge pin mount design requires no wall or floor drilling
• Steel construction for durable, long-term performance
• Satin nickel finish coordinates with common architectural hardware finishes
• Compact footprint at 2.5 inches by 2.5 inches by 0.75 inches
• Lightweight at 0.03 pounds for minimal hinge load impact
• Sold individually, with case quantity of 20 units available

Compatibility

Designed as an OEM-style replacement and standard fit for interior doors equipped with standard residential hinge pin barrels.

Installation Notes

Installation is performed by removing the existing hinge pin, inserting the stop hardware onto the pin barrel, and reseating the pin — no power tools are required for most applications. Verify hinge pin diameter compatibility before installation. No electrical shutoff or gas isolation is required for this hardware. Ensure the door swing arc and stop position are confirmed before final seating to prevent inadequate travel limitation.
