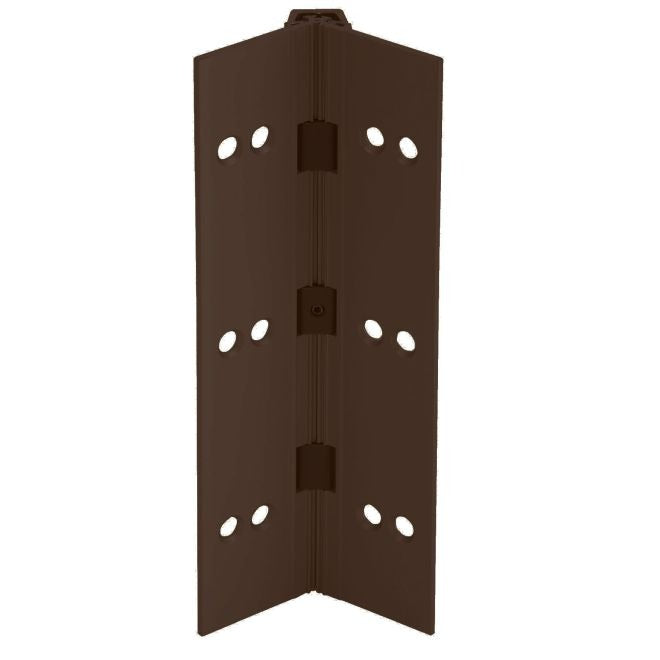

Ives 112HD95313AN Full Mortise Continuous Hinge 95in Dark Bronze

Product Description

The IVES 112HD95313AN is a heavy duty full mortise continuous hinge finished in dark bronze, designed for high-traffic commercial and institutional door applications. Spanning 95 inches in length, this continuous hinge distributes load evenly along the full height of the door, reducing stress on the door frame and extending the service life of both the door and the frame. At 8.2 pounds, the hinge offers substantial construction suited for demanding environments. It is typically installed by commercial door hardware technicians or general contractors on wood or hollow metal door assemblies where a concealed, full-length pivot solution is required.

This continuous hinge is appropriate for commercial entryways, corridor doors, and high-cycle applications in schools, hospitals, government facilities, and office buildings. The full mortise configuration requires routing into both the door edge and the door frame jamb, resulting in a flush, clean appearance when installed. The dark bronze finish coordinates with complementary architectural hardware to deliver a consistent aesthetic across a complete door opening assembly.

Key Features

• Full mortise design routes flush into door edge and frame for a clean, low-profile appearance
• 95-inch continuous length distributes door weight along the full hinge line, reducing point-load stress
• Heavy duty construction rated for high-cycle, high-traffic commercial applications
• Dark bronze architectural finish for coordinated door hardware aesthetics
• Single-unit ordering (sold individually) simplifies procurement for specific door heights

Compatibility

Designed as an OEM-style full mortise continuous hinge replacement or new-installation component for commercial-grade wood and hollow metal door assemblies requiring a 95-inch continuous hinge.

Installation Notes

Installation should be performed by a qualified commercial door hardware technician or licensed contractor. Full mortise hinges require precise routing of both the door edge and the frame jamb using a router or mortising template before fastening. Ensure the door and frame are properly aligned and the door is adequately supported before beginning installation. Follow local building codes and the door manufacturer's requirements for fastener type and hinge placement.
