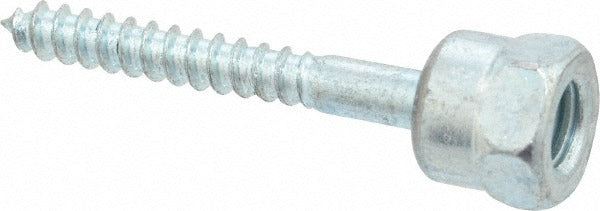

Itw Buildex 560180 Threaded Rod Anchor 5/8 in Zinc Steel

Product Description

The ITW BUILDEX 560180 is a vertical, end-drilled threaded rod anchor designed for securing 3/8-inch threaded rod into wood substrates. Constructed from zinc-plated steel, it provides corrosion resistance in typical interior applications. The anchor measures 5/8 inches in diameter and 2 inches in length, delivering an ultimate pullout rating of 1,760 pounds. This type of anchor is installed by licensed contractors, structural trades, and mechanical trades when supporting pipe hangers, duct supports, or other suspended loads from wood framing or structural members.

This anchor is suited for vertical, end-drilled mounting applications in residential and light commercial construction. Common uses include HVAC duct hanger systems, plumbing pipe support, and electrical conduit support where threaded rod must be anchored into wood joists, beams, or blocking. It accepts standard 3/8-inch threaded rod and is sold in packages of 25 units, making it practical for job-site use where multiple anchor points are required.

Key Features

• 1,760-pound ultimate pullout rating for high-load vertical support applications
• End-drilled vertical mount design accepts 3/8-inch threaded rod
• 5/8-inch diameter body for a secure fit in drilled wood substrate
• Zinc-plated steel construction for corrosion resistance in dry interior environments
• 2-inch length provides adequate embedment depth in wood framing members
• Sold in 25-unit packages to support multi-point installations

Compatibility

Designed for use with wood substrates and standard 3/8-inch threaded rod in vertical, end-drilled anchor applications.

Installation Notes

Installation is typically performed by licensed mechanical, plumbing, or electrical contractors following applicable building and trade codes. Drill a clean hole sized to the anchor diameter in the wood substrate before driving the anchor. Ensure the rod is fully engaged and the anchor is seated flush before applying load. Follow all applicable load ratings and do not exceed the rated pullout capacity for the installation.
