Itw Buildex 560176 Threaded Rod Anchor Vertical End Drilled

Product Description

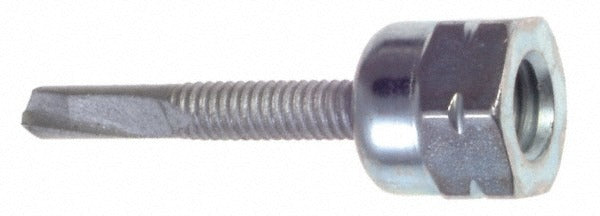

The ITW BUILDEX 560176 is a zinc-plated steel threaded rod anchor designed for vertical, end-drilled mounting applications. It accepts a 3/8 inch threaded rod and features a 5/8 inch diameter body measuring 1-1/2 inches in length. The anchor delivers an ultimate pullout strength of 3,125 pounds, making it a reliable fastening solution for securing threaded rod into steel structural members. This type of anchor is typically installed by electricians, mechanical contractors, and HVAC technicians when suspending pipe, conduit, duct, or equipment supports from overhead steel.

This anchor is suited for use in both commercial and industrial construction environments where threaded rod support systems must be anchored directly into steel. Common applications include suspension of HVAC duct hangers, electrical conduit supports, pipe hangers, and equipment mounting assemblies. The end-drilled vertical mount orientation positions the rod perpendicular to the mounting surface, which is standard for drop-rod hanger configurations in mechanical and electrical systems.

Key Features

• 5/8 inch body diameter fits standard pre-drilled or punched steel mounting holes
• Ultimate pullout strength of 3,125 pounds for load-bearing hanger applications
• Accepts 3/8 inch threaded rod, a common size in mechanical and electrical support systems
• Zinc-plated steel construction provides corrosion resistance in typical indoor environments
• End-drilled vertical mount design positions rod perpendicular to the mounting surface
• Sold in a package quantity of 25 units

Compatibility

Designed for use with steel structure members and 3/8 inch threaded rod in vertical end-drilled mount configurations typical of mechanical, electrical, and HVAC support systems.

Installation Notes

Installation is performed by qualified mechanical, electrical, or HVAC contractors. Ensure all power, pressure, or flow in the supported system is shut off before installing or adjusting hanger assemblies. Follow applicable building codes including NFPA, NEC, and local mechanical codes for hanger spacing and load ratings. Do not exceed the rated ultimate pullout load of 3,125 pounds for this anchor.
