Itw Buildex 560148 Self Drilling Drywall Wall Anchor 50pk

Product Description

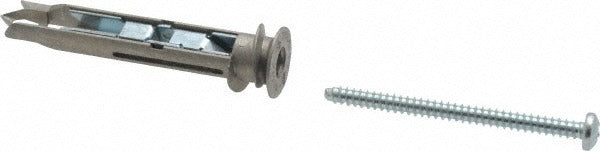

The ITW BUILDEX 560148 is a self drilling zinc wall anchor designed for fastening into hollow drywall without a pre-drilled pilot hole. It measures 0.5625 inches in diameter and 2.5 inches overall length, and accommodates a number 8 screw. Rated at 85 pounds load capacity, this anchor expands behind the drywall panel to distribute holding force across the back face. Licensed contractors and trade installers use it when a stud is not available and a secure, load-rated fastening point is required. The zinc construction provides corrosion resistance suitable for interior dry applications.

This anchor is intended for use in drywall panels ranging from 0.375 inches to 0.5 inches thick, covering standard half-inch and three-eighths-inch wallboard commonly found in residential and light commercial construction. Typical applications include mounting electrical enclosures, HVAC grille covers, plumbing access panels, and other trade fixtures to interior partition walls where stud-bay clearance is not available. Each package contains 50 anchors, making it practical for multi-point installations or repeat service calls.

Key Features

• Self drilling design installs without a pilot hole, reducing labor time
• 85 pound maximum load capacity per anchor
• Zinc construction for corrosion resistance in interior environments
• Accepts number 8 screws
• Compatible with drywall thickness from 0.375 inches to 0.5 inches
• 50 anchors per package with minimum order quantity of 1 package

Compatibility

Designed for use in drywall panels 0.375 inches to 0.5 inches thick. Intended for hollow wall fastening where no structural stud backing is present in interior partition wall applications.

Installation Notes

Installation is performed with a standard Phillips screwdriver or drill driver set to low torque. No pre-drilling is required. Ensure the wall cavity behind the anchor point is clear of wiring, plumbing, or ductwork before driving the anchor. Always verify that the combined load applied does not exceed the rated 85 pound capacity of the anchor.
