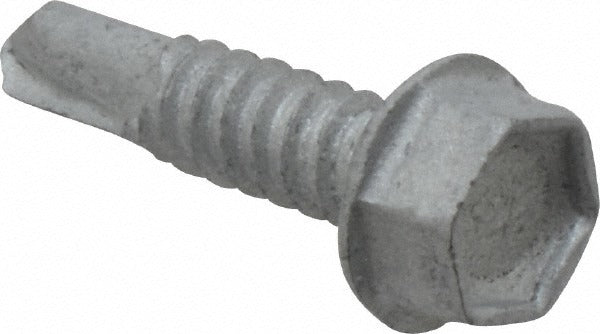

Itw Buildex 560052 Self Drilling Screw 1/4 in 100 Pack

Product Description

The ITW BUILDEX 560052 is a 1/4 inch self drilling screw designed for fast, reliable fastening without the need for a pre-drilled pilot hole. Featuring a hex washer head and hex drive, this screw provides strong torque transfer and a wide bearing surface to resist pull-through. The number 3 drill point bores through material and threads in a single step, reducing installation time on metal-to-metal and metal-to-substrate applications. Each package contains 100 screws with a 1/4-14 thread and 1 inch length under head. Installers in HVAC, electrical, and light construction trades rely on this type of fastener for ductwork, equipment mounting, and structural panel attachment.

The 560052 is suited for commercial and residential applications where a self-tapping, self-drilling fastener is required in steel or similar substrates. The hex washer head and hex drive allow use with standard hex driver bits or a nut driver, making this screw compatible with common power tools used in trade work. The 1 inch length under head and 1/4-14 thread pitch are appropriate for moderate-gauge material fastening in sheet metal and light structural assembly.

Key Features

• Number 3 drill point bores and threads in one pass, eliminating pilot hole requirements
• Hex washer head provides a wide bearing surface and resists pull-through
• Hex drive accepts standard nut drivers and hex driver bits for fast installation
• 1/4-14 thread pitch delivers strong holding power in steel substrates
• Steel construction for durability in demanding trade applications
• Sold in a 100-count package for jobsite and shop use

Compatibility

Designed as a standard 1/4 inch self drilling screw for use in metal-to-metal and light structural fastening applications typical in HVAC, electrical, and construction trades.

Installation Notes

Self drilling screws of this type are installed by licensed HVAC technicians, electricians, and general contractors using a hex driver or nut driver attachment on a power drill or impact driver. Always ensure the substrate material thickness is appropriate for the number 3 drill point before installation. Disconnect power and de-energize any electrical enclosures or equipment before fastening into or near live panels. Follow applicable building codes and manufacturer guidelines for fastener spacing and load requirements.
