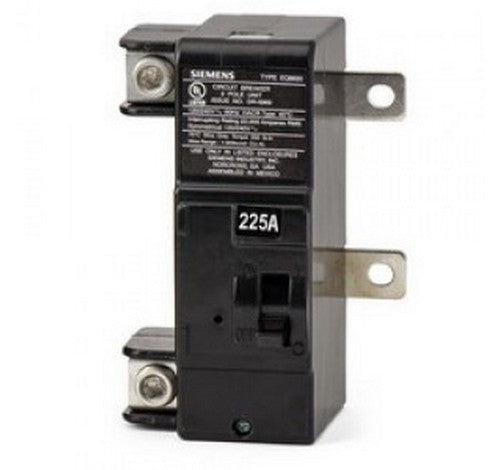

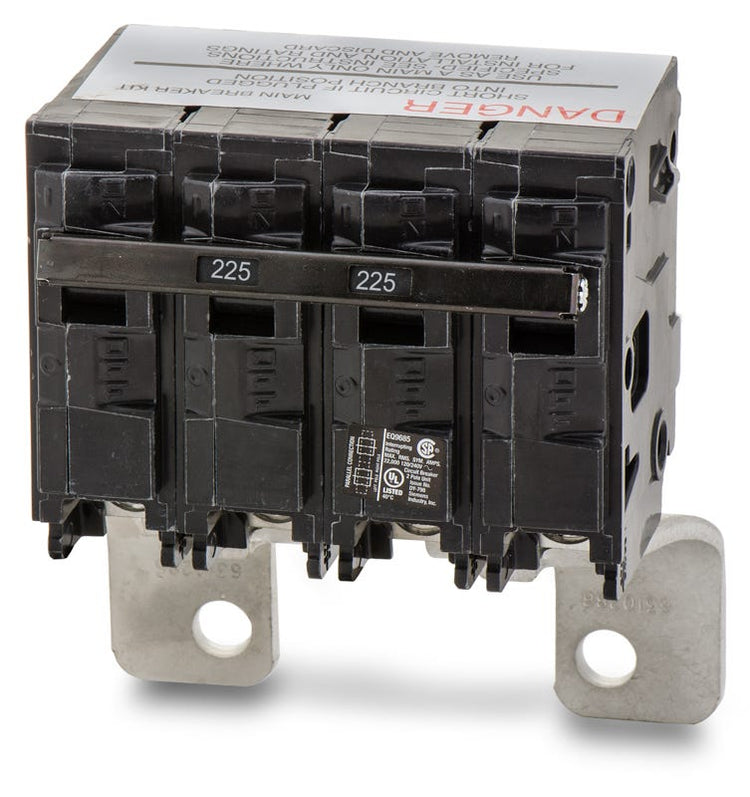

Ite mbk225 panel conv kit 225a

Product Description

The ITE MBK225 is a 225A panel conversion kit designed for electrical distribution. Meeting UL 489 standards, this 2-pole breaker is suitable for 120/240V systems. It features thermal-magnetic trip technology and a 22kAIC interrupt rating. Designed for plug-in connection, it provides long-time and instantaneous trip functions.

• Authentic Siemens Product
• 225 Amp main breaker kit
• For use with EQ type load centers

Product Highlights

The ITE MBK225 conversion kit ensures reliable circuit protection with thermal-magnetic technology and a robust interrupt rating.

Product Information

Standard Information

• Brand: ITE
• Manufacturer Part Number: MBK225
• Country of Origin: United States

Technical Specifications

• Type: EQ
• Application: Electrical Distribution
• Standard: UL 489
• Voltage Rating: 240 Volt
• Amperage Rating: 225A
• Trip Range: Thermal Magnetic
• Interrupt Rating: 22 AIC
• Number Of Poles: 2P
• Product Group: 5200
• Brand: ITE SIEMENS
• MPN: MBK225 EQ9686
• UPC: 78364318367
• Series: MBK
• Voltage: 120/240VAC
• Poles: 2
• Phase: 1
• AIC Rating: 22kA @ 120/240VAC
• Mounting Style: Plug-On
• Terminal Type: Lugs
• For Use With: Siemens EQ Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 1 AWG - 300 kcmil (Cu/Al)
• Max Wire: 300 kcmil
• Min Wire: 1 AWG
• Accessories: Mounting Hardware, Line Side Lugs Included
• Approval: UL
• Temp Rating: 40C
• Construction Features: Main Breaker Kit, 22kA Interrupt Rating, HACR Rated, For EQIII Load Centers
• Item model number: MBK225
• Item Package Quantity: 1
• Manufacturer: SIEMENS
• Category: Molded Case Circuit Breaker
• Family: MBK Series
• Type class: MBK
• Functions: LI – Long-Time and Instantaneous
• Protection: Thermal Magnetic
• Connection: Plug-In
• Sub category: Molded Case – Main Breaker
• Condition: New
• Aic rating: 22kA@240V
• Part No.: MBK225
