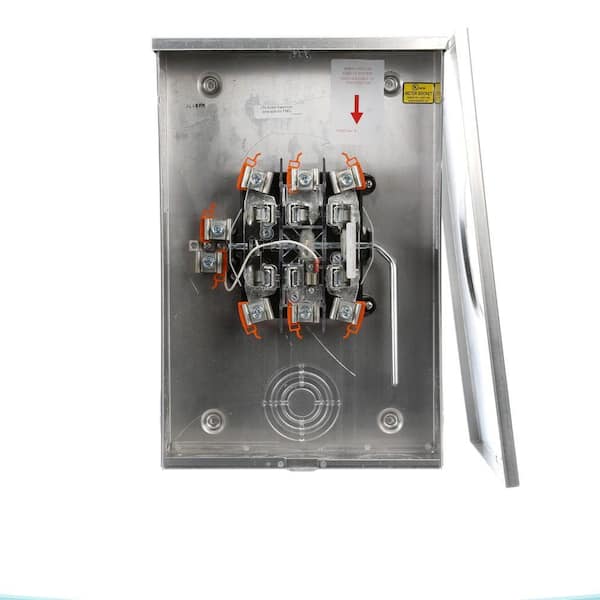

Ite 41407-025F Meter Socket 200 Amp 7 Jaw Ringless Lever Bypass OH/UG Fed

Product Description

The ITE 41407-025F is a 200 Amp, 7 Jaw, ringless meter socket with lever bypass, designed for overhead/underground (OH/UG) feed. It features a latch and hasp for secure closure. This meter socket is suitable for 3-Phase, 3-Wire 600V systems and includes hub provision with an RX CL plate.

• 200 Amp capacity
• 7 Jaw configuration
• Ringless design with lever bypass

Product Highlights

This meter socket is ideal for residential or commercial applications requiring a reliable and secure meter mounting solution.

Product Information

Standard Information

• Brand: ITE
• Manufacturer Part Number: 41407-025F

Technical Specifications

• Clamp Jaw: Lever Bypass type HQ
• 3-Phase: 3-Wire 600V
• RX CL Plate: Hub Provision
• WIRE SIZE: 6 AWG TO 350 KCMIL (ALUMINUM) WIRE SIZE
• ENCLOSURE MATERIAL: 12 GAUGE ALUMINUM ENCLOSURE MATERIAL
• VOLTAGE RATING: 600 VAC
• ENCLOSURE: NEMA 3R
• CURRENT RATING: 200 AMPERE
• CIRCUIT CONFIGURATION: 3-PHASE 3-WIRE
• SERVICE TYPE: OVERHEAD/UNDERGROUND
• NEUTRAL TYPE: SOLIDLY GROUNDED
• HUB TYPE: 2.75 INCH RX CLOSING PLATE
• KNOCKOUT(S): (3) (1 INCH-1-1/2 INCH-2 INCH-2-1/2 INCH-3 INCH), (3) (3/4 INCH-1 INCH-1-1/4 INCH-1-1/2 INCH-2 INCH-2-1/2 INCH-3 INCH), (1) 1/4 INCH, (1) 1/2 INCH CONCENTRIC KNOCKOUT
• JAW(S): 7
• SWITCH: LEVER BYPASS
• BLOCK MATERIAL: GLASS FILLED POLYESTER
• INCLUDES: GROUND LUG, STAINLESS STEEL LATCH AND HASP
