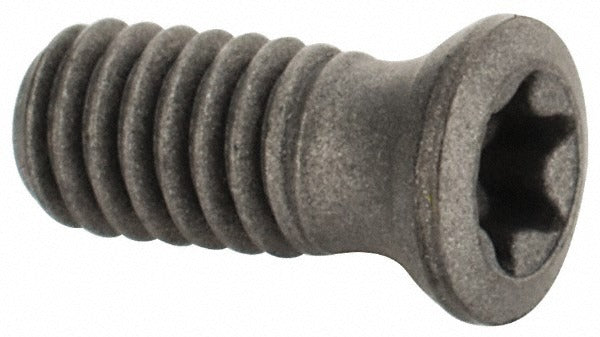

Iscar 7006316 Indexable Cap Screw T7 Torx M2.5 X 0.45

Product Description

The ISCAR 7006316 is a countersunk-head cap screw designed to secure indexable inserts in milling toolholders. It uses a T7 Torx drive and an M2.5 x 0.45 thread for reliable clamping force without distorting the insert seat. At 6.00 mm (0.2362 inches) in overall length and weighing approximately 0.002 pounds, this small-format fastener is engineered to the precise tolerances that indexable tooling demands. It is compatible with the FF EWX-MM-04 toolholder style and is driven with the T-7/51 key driver. Machinists and toolroom technicians who service Helido and Multimaster series toolholders rely on this screw as a direct OEM-style replacement when screws are lost, stripped, or damaged during routine insert changes.

This cap screw is intended for indexable milling applications within the ISCAR Helido and Multimaster series product families. It fits the FF EWX-MM-04 toolholder style and is rated for insert-clamping service in production milling environments. The countersunk head profile sits flush with the insert pocket, keeping the cutting geometry unobstructed. It is sold in a package quantity of 1, with a minimum order quantity of 5 units, making it practical to stock as a consumable alongside replacement inserts.

Key Features

• T7 Torx drive for positive engagement and reduced cam-out during tightening
• M2.5 x 0.45 thread size matched to ISCAR Helido and Multimaster toolholder specifications
• Countersunk head sits flush in the insert pocket to maintain cutting geometry
• 6.00 mm overall length for correct seating depth in compatible toolholders
• Compatible with T-7/51 key driver for consistent torque application
• Direct insert hardware replacement — reduces downtime during routine insert changes

Compatibility

Compatible with the FF EWX-MM-04 toolholder style. Confirmed compatible inserts include H600 WXCU 040310HP and H600 WXCU 040310T. Requires T-7/51 key driver. Fits within the ISCAR Helido and Multimaster series.

Installation Notes

Installation is performed by machinists or toolroom technicians during insert replacement or toolholder servicing. Disengage the machine and lock out all spindle motion before removing or installing indexable hardware. Use only the specified T-7/51 Torx key driver to avoid rounding the drive recess. Do not substitute screws from other series, as thread pitch and head geometry are not interchangeable across toolholder families.
