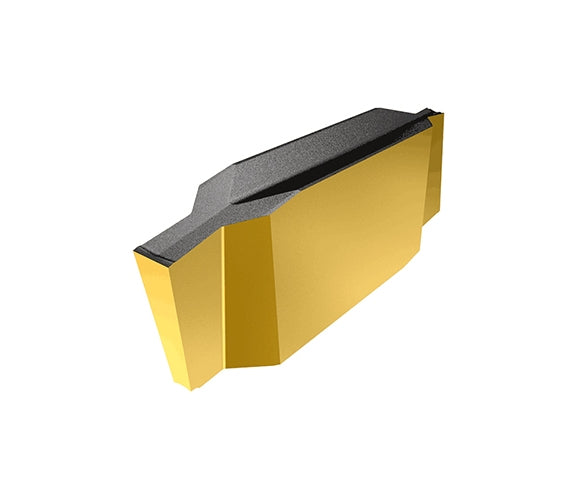

Iscar 6405084 GIP-1.57-0.15 IC830 Carb Grv Insert W.062 R.006 T.106

Product Description

The Iscar GIP-1.57-0.15 IC830 carbide grooving insert with a width of 0.062 inches is designed for external grooving tasks. This insert is effective in stainless steel, high-temperature alloys, and other metals. Its neutral direction and precise specifications make it suitable for various grooving applications.

• Insert Material: Carbide
• Coating: AlTiN + TiN
• Max Groove Depth: 0.106 inches

Product Highlights

The insert features a corner radius of 0.006 inches and allows for a minimum grooving feed of 0.0016 inches, making it versatile for precision machining.

Product Information

Standard Information

• Brand: Iscar
• Insert Designation: GIP

Technical Specifications

• Insert Width: 0.0620 inches
• Max Groove Depth: 0.1060 inches
• Direction: Neutral
• Corner Radius: 0.0060 inches
• External/Internal: External
• Operation/Application: Grooving
• Work Material: Stainless Steel, Hi Temp, Steel
• Min. Grooving Feed: 0.0016 inches
• Max. Grooving Feed: 0.0024 inches
• Insert Center Width: 0.0870 inches
