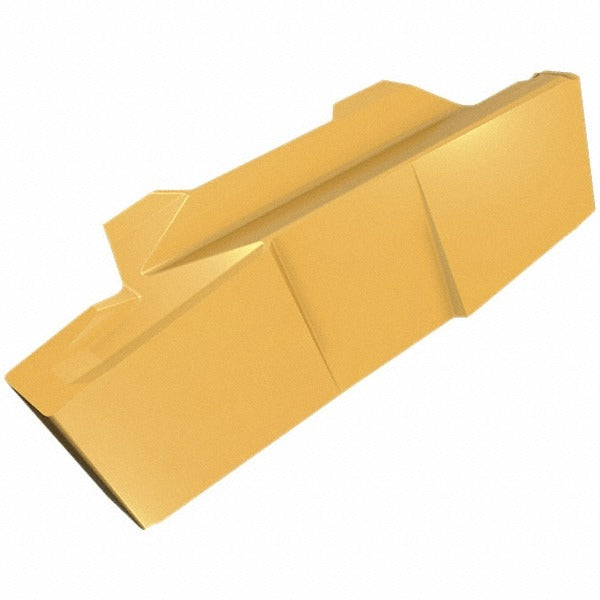

Iscar 6405029 Grooving Insert GIP200015X IC830 2mm

Product Description

The ISCAR 6405029 is a solid carbide grooving insert in the Cut-Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. Carrying the IC830 grade with a PVD-applied AlTiN and TiN coating, this insert delivers high wear resistance and thermal stability at elevated cutting speeds. The double-ended configuration provides two usable cutting edges per insert, extending tool life and reducing per-edge tooling cost. With a 2 mm cutting width and a positive 7-degree rake angle, it is engineered for controlled chip formation and consistent surface finish in demanding turning applications.

This insert is intended for grooving superalloys and titanium alloys, materials that demand sharp, wear-resistant tooling with reliable chip evacuation. It is suited for use in production turning environments handling aerospace components, medical parts, and other tight-tolerance workpieces made from difficult-to-machine materials. The X chip breaker geometry supports chip control across the rated depth-of-cut range. Installation requires a compatible Cut-Grip clamping toolholder; the insert is held in place by a mechanical clamp, not brazing.

Key Features

• IC830 grade solid carbide with PVD AlTiN and TiN coating for extended tool life in superalloy and titanium cutting
• 2 mm cutting width with a 0.15 mm corner radius for precise groove geometry
• Maximum depth of cut range of 3 mm to 4 mm
• Double-ended insert provides two cutting edges per piece
• Positive 7-degree rake angle with X chip breaker for controlled chip evacuation
• Right-hand cutting orientation; compatible with standard Cut-Grip clamping toolholders

Compatibility

Designed for use with ISCAR Cut-Grip series clamping toolholders that accept GIP-style inserts with a 200015 size code. Primary workpiece materials are superalloys and titanium (ISO material codes M, P, and S).

Installation Notes

This insert is installed by a machinist or toolroom technician into a compatible Cut-Grip clamping toolholder. Power down and lock out the machine before seating or replacing inserts. Ensure the insert pocket and clamping surfaces are clean and free of chips before installation. Follow the toolholder manufacturer's clamping torque specifications and do not use the insert in a holder designed for a different insert style or size code.
