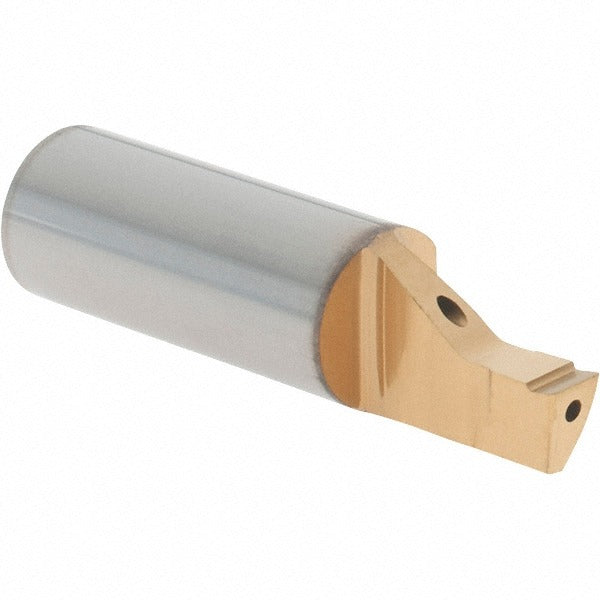

Iscar 6404147 Face Grooving Tool 3mm Groove Solid Carbide

Product Description

The ISCAR 6404147 is a solid carbide face grooving tool designed for internal face grooving operations on CNC lathes and turning centers. It features an 8 mm shank diameter and cuts a 3 mm groove width, making it suited for precision work in small-bore applications. The tool has an overall length of 30 mm (1.1811 inches) and requires a minimum hole diameter of 16 mm (0.6300 inches) to operate. Solid carbide construction provides rigidity and wear resistance in demanding turning applications. Licensed machinists and CNC operators install and run this tooling in production and job-shop environments.

This face grooving tool is intended for internal face groove applications where a small shank diameter and controlled groove width are required. With a maximum hole depth of 10 mm (0.3937 inches), it is well suited for shallow face groove profiles in bores at or above 16 mm. Typical applications include creating retaining ring grooves, oil grooves, and sealing-surface features on turned components in aerospace, automotive, and general machining industries.

Key Features

• Solid carbide construction for rigidity and extended tool life in turning operations
• 3 mm groove width for precise face grooving cuts
• 8 mm shank diameter for compatibility with standard toolholding systems
• Minimum bore entry of 16 mm allows use in small internal diameter applications
• Maximum groove depth of 10 mm suitable for shallow face groove profiles
• Compact 30 mm overall length for use in tight clearance setups

Compatibility

Designed as an OEM-style replacement or direct-use face grooving insert tool for CNC lathes and turning centers accepting an 8 mm round shank toolholder.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before setting or changing tooling. Secure the shank firmly in the toolholder to the rated clamping specification of the holder being used. Verify bore clearance and depth of cut parameters against the 16 mm minimum hole diameter and 10 mm maximum depth limits before running the program.
