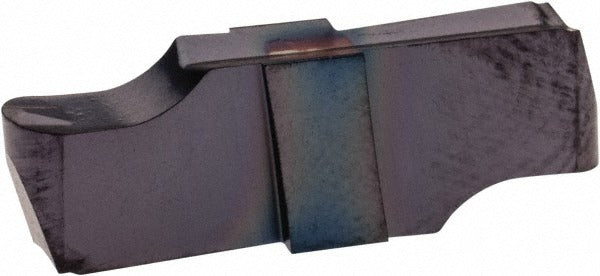

Iscar 6403150 Grooving Insert GIPI239120P IC908 Tialn

Product Description

The ISCAR 6403150 is a solid carbide grooving insert with the manufacturer designation GIPI239120P, finished in TiAlN via a PVD coating process. Designed for the Cut-Grip series, this double-end insert delivers a cutting width of 2.39 mm (0.0941 inches) and a maximum depth of cut of 6.40 mm. The IC908 grade substrate with TiAlN finish provides broad material compatibility, making it a reliable choice for production turning operations on a wide range of workpiece materials. Machinists and CNC turning specialists install this insert into compatible Cut-Grip toolholders for precise grooving, parting, and cut-off applications.

This insert is suited for grooving operations in both production and job-shop environments. Its neutral hand orientation and positive rake angle of 8 degrees support efficient chip evacuation. The P chip breaker geometry is optimized for general-purpose grooving across universal workpiece materials. Compatible material grades include C1, C2, C6, and C7 classifications, with ISO workpiece material codes covering H, K, M, P, and S groups, making this insert applicable across steel, stainless, cast iron, non-ferrous, and superalloy turning contexts.

Key Features

• Solid carbide construction with IC908 manufacturer grade for extended tool life
• TiAlN PVD coating for heat resistance and reduced flank wear
• 2.39 mm cutting width with a maximum depth of cut of 6.40 mm
• Double-end insert design for increased utilization per piece
• Positive rake angle of 8 degrees with P chip breaker geometry for controlled chip flow
• Full radius corner at 0.0472 inches supports consistent groove profile

Compatibility

Designed for use in ISCAR Cut-Grip series toolholders. ISO workpiece material codes H, K, M, P, and S are supported, corresponding to material grades C1, C2, C6, and C7. Conforms to ISO 13399 standards. Insert size code is 239120.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Always power down and lock out the machine spindle before changing inserts. Use the correct torque wrench and insert clamp hardware specified for the Cut-Grip toolholder to secure the insert properly. Inspect the insert seat and clamp for wear or debris before seating a new insert.
