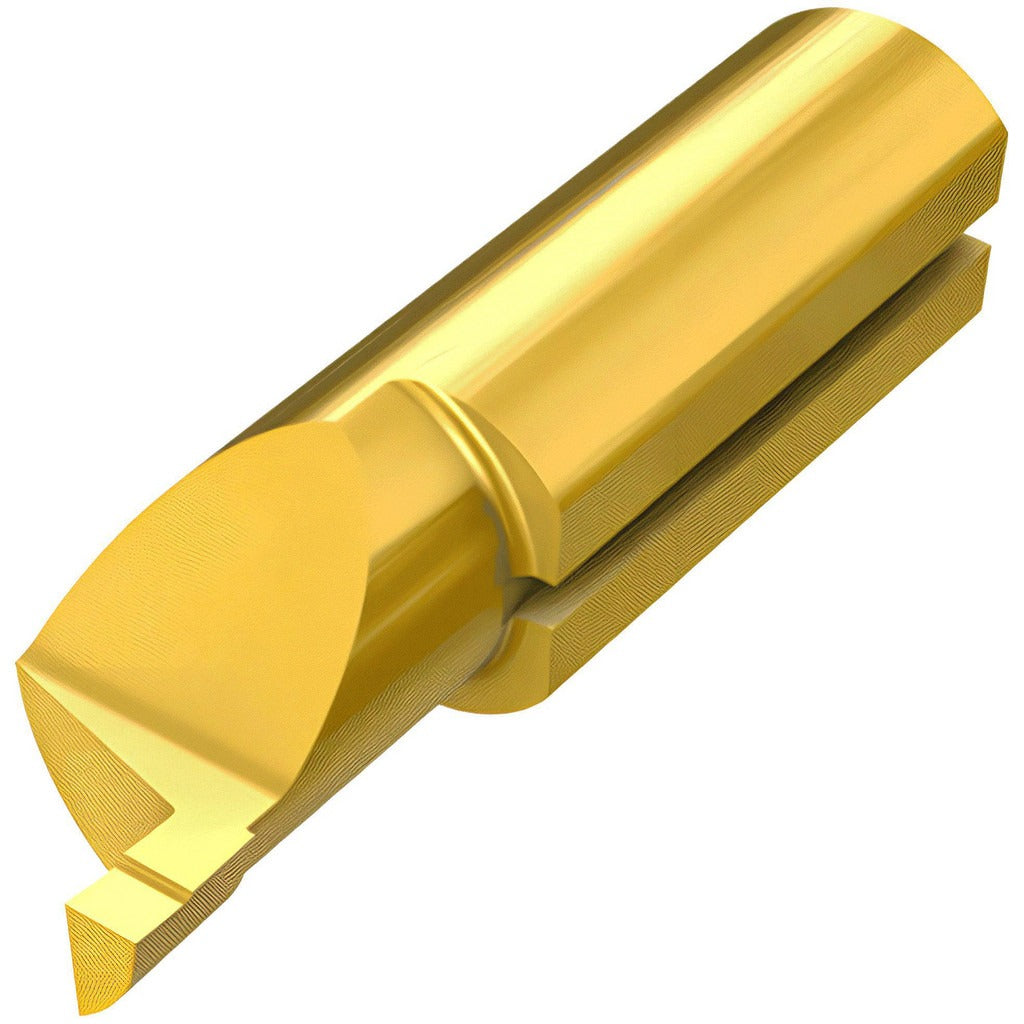

Iscar 6402834 Face Grooving Tool 1.5mm 6mm Shank Carbide

Product Description

The ISCAR 6402834 is a solid carbide face grooving tool designed for internal grooving operations on small-bore workpieces. With a 6 mm shank diameter and a 1.5 mm groove width, this tool is built for precision grooving in confined bore conditions. The solid carbide construction provides rigidity and wear resistance required for consistent groove geometry in ferrous and non-ferrous materials. At 26 mm overall length and a 2 mm projection, it is sized for tight-clearance applications where tool reach and stability are equally critical. Machinists and CNC lathe operators specify this tool for production turning environments where groove accuracy is non-negotiable.

This face grooving tool is suited for internal face grooving in bores with a minimum hole diameter of 6 mm. It handles maximum hole depths up to 11 mm, making it appropriate for shallow internal groove profiles on turned parts in both manual and CNC lathe setups. Typical applications include snap ring grooves, oil retention grooves, and stepped bore features on small-diameter workpieces across general machining, aerospace component work, and hydraulic component manufacturing.

Key Features

• Solid carbide construction for superior rigidity and extended tool life
• 1.5 mm groove width for precise, repeatable groove profiles
• 6 mm shank diameter compatible with standard small-bore toolholders
• 26 mm overall length with 2 mm projection for controlled reach in tight bores
• Minimum bore entry of 6 mm suits small-diameter internal grooving
• Maximum hole depth of 11 mm covers common shallow internal groove depths

Compatibility

Designed for use in CNC lathes and manual turning centers equipped with toolholders accepting a 6 mm shank diameter; confirm toolholder bore and clamping method before installation.

Installation Notes

Installation should be performed by a qualified machinist following shop safety protocols. Power down and lock out the machine before mounting or removing the tool. Ensure the shank is fully seated and clamped securely in the toolholder to the manufacturer-specified engagement depth to prevent deflection during grooving passes. Inspect the cutting edge for chips or wear before each use.
