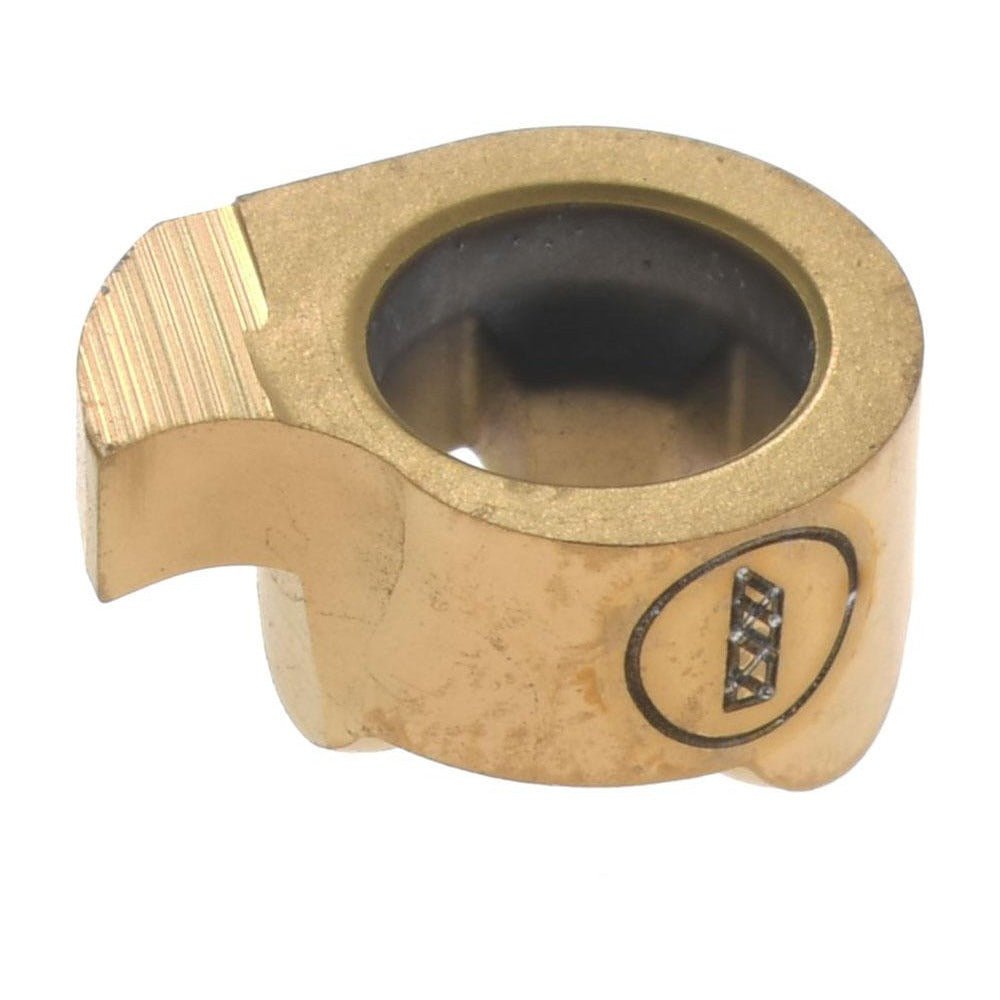

Iscar 6402482 Grooving Insert IC528 Chamgroove 1.7mm

Product Description

The ISCAR 6402482 is a solid carbide grooving insert in the ChamGroove series, designed for precision grooving operations on CNC turning centers and lathes. It carries the IC528 manufacturer grade with a PVD-applied TiCN and TiN finish, providing wear resistance and thermal stability during cutting. The insert features a 1.70 mm cutting width and a maximum depth of cut of 1.50 mm, making it well suited for narrow, controlled grooving passes. The screw-held clamping method ensures rigid, repeatable seating in compatible toolholders. This insert is installed and used by machinists and CNC tooling technicians working in precision metalworking environments.

The 6402482 is engineered for grooving superalloys and titanium as its primary workpiece materials, aligning with the IC528 grade coating chemistry optimized for these demanding materials. It is a right-hand insert and is designated as a multi-use tool within the ChamGroove platform. Typical applications include external and face grooving passes where tight dimensional tolerances and smooth surface finish are required. The ISO 13399 standard compliance supports integration with digital tooling management systems used in modern machining cells.

Key Features

• IC528 grade with PVD TiCN and TiN coating for high wear resistance on superalloys and titanium
• 1.70 mm cutting width with a maximum depth of cut of 1.50 mm
• Right-hand orientation with screw-held insert clamping for secure, repeatable positioning
• Corner radius of 0.10 mm for controlled edge geometry on narrow grooves
• Multi-use designation within the ChamGroove series tooling platform
• ISO 13399 compliant for use with digital tooling data management systems

Compatibility

Designed for use with compatible ChamGroove series screw-clamp toolholders accepting the GIQR insert style with size code 8170010. Verify toolholder compatibility with the ChamGroove system catalog before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and the turret is in a safe index position before changing inserts. Use the correct torx or hex key to the toolholder manufacturer specified torque range for the screw-clamp seat. Inspect the insert pocket and clamping screw for debris or wear before seating a new insert.
