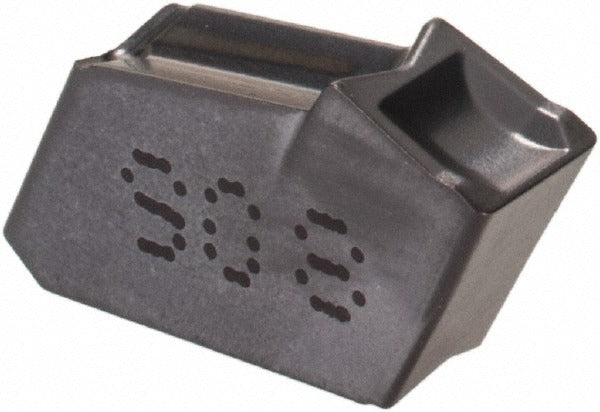

Iscar 6095760 Gsfn 4 IC908 Milling Insert Solid Carbide

Product Description

The ISCAR 6095760 is a solid carbide milling insert designed for high-performance grooving and parting operations on CNC milling machines and machining centers. It carries the GSFN 4 insert style in the IC908 manufacturer grade, featuring a PVD-applied TiAlN coating over a submicron carbide substrate. The insert measures 0.159 inches in inscribed circle diameter with a cutting edge effective length of 0.159 inches and a corner radius of 0.0118 inches (0.30 mm). The 7-degree relief angle and positive rake geometry reduce cutting forces and extend tool life across demanding material groups. Licensed machinists and tooling technicians install this insert in compatible SGSF-series cutter bodies.

This insert is suited for milling operations across a wide range of workpiece materials including steel, stainless steel, cast iron, superalloys, titanium, and hard materials (ISO material codes P, M, K, S, and H). The Self Grip holding method provides secure clamping without additional fasteners in compatible toolholders. It is appropriate for both roughing and finishing passes where a single-sided, neutral-hand insert with honed cutting edge geometry is specified. Typical applications include slot milling, face grooving, and profile cuts on production and job-shop equipment.

Key Features

• IC908 grade with PVD TiAlN coating for extended wear resistance on steel and superalloys
• Submicron solid carbide substrate for toughness at high cutting speeds
• GSFN 4 geometry with positive rake and 7-degree relief angle to minimize cutting forces
• Self Grip holding method — no screw required in compatible SGSF-series cutter bodies
• Honed cutting edge for consistent finish and edge stability
• Single-sided neutral-hand design; 1 cutting edge per insert
• Compliant with ANSI and ISO 13399 tooling data standards

Compatibility

Designed for use with SGSF-series cutter bodies that accept the GSFN 4 insert style with Self Grip holding. Verify cutter body designation before ordering. ANSI code: GSFN 4 IC908. ISO code: GSFN 4.

Installation Notes

Installation is performed by qualified machinists or tooling technicians following machine tool lockout and spindle-stop procedures before any insert change. The Self Grip interface seats the insert mechanically into the pocket — inspect the pocket for chips or wear before seating a new insert. Do not exceed the cutter body manufacturer's recommended speed and feed ranges for the IC908 grade. Dispose of worn inserts per applicable shop waste and carbide recycling procedures.
