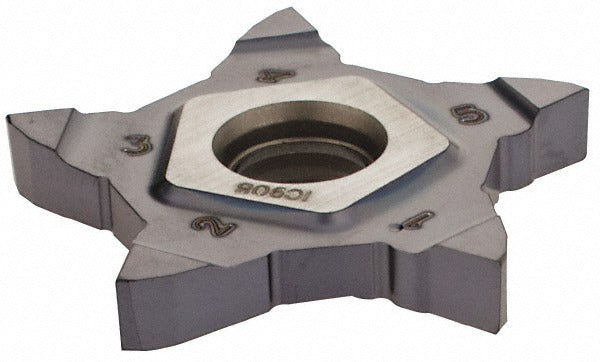

Iscar 6095013 Grooving Insert PENTA24N318020NF IC908

Product Description

The ISCAR 6095013 is a solid carbide grooving insert in the PENTA series, designed for external grooving and parting operations on CNC lathes and turning centers. The insert carries the IC908 grade with a PVD-applied TiAlN coating, delivering wear resistance and thermal stability across a broad range of workpiece materials. It features a right-hand cutting orientation, a 0.125 inch cutting width, and a maximum depth of cut of 0.256 inches. The NF chip breaker geometry promotes reliable chip control during finishing passes. Machinists and CNC operators working in production turning environments install this insert into compatible PENTA-series toolholders.

This insert is suited for grooving applications across universal workpiece materials, including steel, stainless steel, cast iron, aluminum alloys, high-temperature alloys, and hardened materials, corresponding to material grade codes C1, C2, C6, and C7 and ISO workpiece material codes H, K, M, P, and S. The PENTA 24N318020NF geometry fits standard PENTA-series grooving and parting toolholders. It is appropriate for both light finishing and moderate stock removal in grooving operations on horizontal and vertical turning centers in job shop and production environments.

Key Features

• Solid carbide IC908 grade with PVD TiAlN coating for extended tool life
• 0.125 inch cutting width for precise groove dimensioning
• Maximum depth of cut of 0.256 inches, within a 0.200 to 0.300 inch depth range
• NF chip breaker geometry for controlled chip evacuation during finishing
• Right-hand cutting orientation
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use in PENTA-series grooving and parting toolholders that accept the 24N insert size. Compatible with workpiece materials across ISO codes H, K, M, P, and S, covering steel, stainless steel, cast iron, nonferrous alloys, and high-temperature alloys. Manufacturer catalog reference: PENTA 24N318NF020RS.

Installation Notes

Installation is performed by a qualified machinist or CNC setup technician. Power down and lock out the machine spindle before seating or removing the insert. Use the correct ISCAR PENTA toolholder wrench to ensure proper clamping torque without over-stressing the insert. Inspect the insert pocket for chips or debris before seating a new insert to ensure full, flat contact and accurate cutting geometry.
