Iscar 6011409 Cutoff Insert 4.05mm Left Hand IC808

Product Description

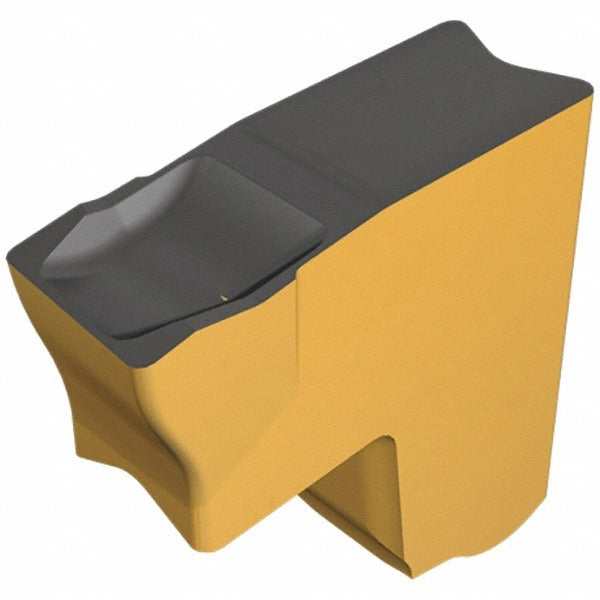

The ISCAR 6011409 is a solid carbide cutoff and parting insert designed for use in Tang-Grip toolholding systems. It carries the IC808 manufacturer grade, a PVD-coated submicron carbide grade engineered for consistent performance across a wide range of workpiece materials. The insert features a 4.05 mm (0.1594 inch) cutting width, a 4-degree left-hand lead angle, a 7-degree relief angle, and a 0.24 mm corner radius. The C-style chipbreaker promotes controlled chip formation during parting and grooving operations. Licensed machinists and CNC operators install this insert in compatible Tang-Grip parting blade assemblies on lathes and turning centers.

This insert is suited for parting and cutoff operations on a broad range of metallic workpieces, including steel, stainless steel, cast iron, non-ferrous alloys, and high-temperature alloys, as indicated by the primary workpiece material codes H, K, M, P, and S. The left-hand configuration makes it appropriate for applications where the cutting force direction or machine spindle orientation requires a left-hand approach. Typical use is in production turning environments where consistent part separation and tight tolerances on the cutoff face are required.

Key Features

• IC808 PVD-coated submicron carbide grade for broad material compatibility
• 4.05 mm (0.1594 inch) cutting width for precise parting operations
• 4-degree left-hand lead angle for directional cutting force control
• 7-degree relief angle reduces rubbing and extends tool life
• C-style chipbreaker promotes predictable chip evacuation
• Tang-Grip clamping method provides rigid insert retention in the toolholder

Compatibility

Designed as an OEM-style replacement insert for Tang-Grip series parting and cutoff toolholders accepting TAG style inserts with a size code of 4.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine spindle fully stopped and locked out per facility lockout/tagout procedures. Seat the insert firmly into the Tang-Grip pocket and verify the clamp is properly engaged before resuming operation. Inspect the pocket and clamping surfaces for wear or debris before seating a new insert, as a contaminated pocket can affect insert stability and cutting performance.
