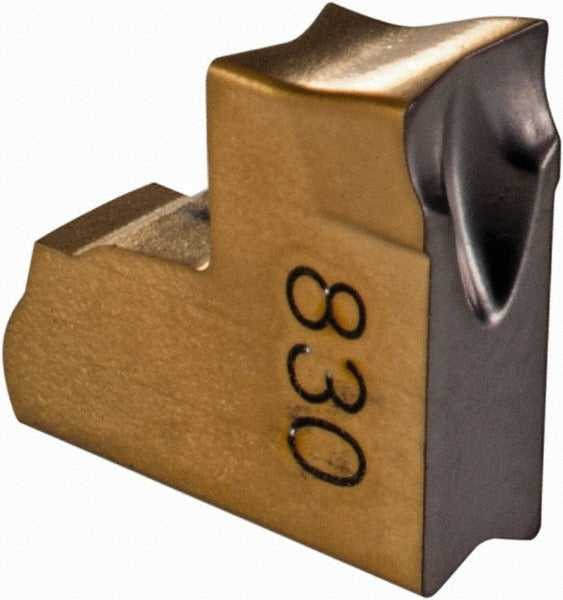

Iscar 6011395 Carbide Cutoff Insert 3mm Tang-grip

Product Description

The ISCAR 6011395 is a solid carbide cutoff and parting insert in the Tang-Grip series, designed for precision grooving and parting operations on CNC lathes and turning centers. It carries the IC830 manufacturer grade with a PVD-applied TiN/TiAlN dual-layer coating, making it well suited for cutting superalloys and other demanding workpiece materials. The insert features a 3.00 mm (0.1181 inch) cutting width, a 6-degree right-hand lead angle, and a 7-degree relief angle. The J chipbreaker geometry controls chip flow during parting cuts. Machinists and CNC operators install this insert into compatible Tang-Grip toolholders as a single-end, self-gripping replacement insert.

This insert is intended for parting and cutoff applications on superalloys and similar difficult-to-machine materials, classified under ISO material codes M, P, and S. It is a right-hand, single-end insert with no full-radius geometry, making it appropriate for straight parting cuts in production turning environments. The Tang-Grip self-grip holding method provides secure seating without additional clamping hardware. Typical use cases include production shops, aerospace component machining, and general CNC turning operations where consistent cutoff performance on high-strength alloys is required.

Key Features

• IC830 grade PVD coating: TiN/TiAlN finish optimized for superalloy and multi-material cutting
• 3.00 mm cutting width (0.1181 inch) for precise parting and grooving
• 6-degree right-hand lead angle with 7-degree relief angle for controlled cutting geometry
• J chipbreaker for effective chip management during parting operations
• Self-grip Tang-Grip holding method — no additional clamping required
• Conforms to ISO 13399 tooling data standards for system integration

Compatibility

Designed for use with Tang-Grip series toolholders that accept TAGR3J size-3 inserts. Confirm toolholder compatibility with the TAGR insert style and self-grip holding method before installation.

Installation Notes

Installation is performed by machining technicians or CNC setup personnel. Power down and lock out the machine spindle before replacing any insert. Seat the insert fully into the Tang-Grip toolholder pocket and verify secure self-grip engagement before resuming operation. Do not use damaged or worn inserts, as improper seating can cause insert ejection or workpiece damage during parting cuts.
