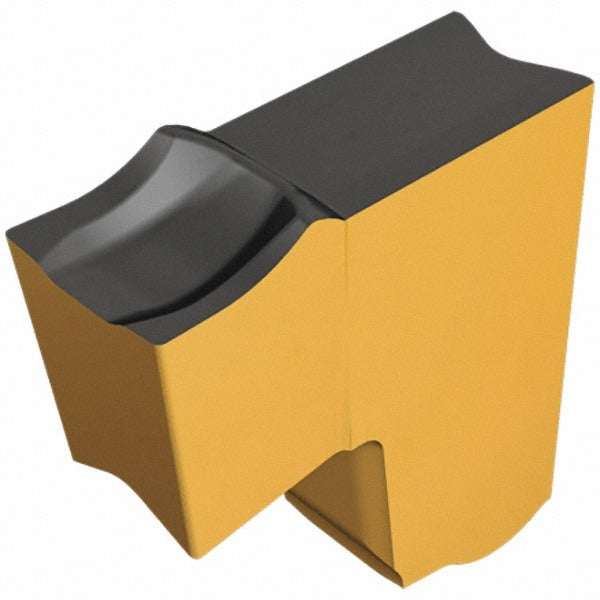

Iscar 6004672 Carbide Cutoff Insert 2.01mm Tang-grip

Product Description

The ISCAR 6004672 is a solid carbide cutoff and grooving insert designed for precision parting and grooving operations on CNC lathes and turning centers. It carries the IC808 manufacturer grade with a PVD-applied TiAlN/AlTiN/TiN multilayer coating, making it suitable for a wide range of workpiece materials including steel, stainless steel, cast iron, and high-temperature alloys. The insert features a 2.01mm (0.079 inch) cutting width, a 0.20mm (0.008 inch) corner radius, and a neutral lead angle. It belongs to the Tang-Grip series and uses an LF chipbreaker geometry. Licensed machinists and CNC tooling technicians are the primary installers.

This insert is intended for grooving and parting applications across both light-duty and production turning environments. The LF chipbreaker geometry promotes effective chip control at moderate feed rates. The universal primary workpiece material classification covers ISO material groups H, K, M, P, and S, giving this insert broad applicability across ferrous metals, nonferrous metals, stainless steels, and superalloys. It is a single-end insert designed to seat in compatible Tang-Grip toolholders.

Key Features

• IC808 grade solid carbide with PVD-applied TiAlN/AlTiN/TiN multilayer coating for wear resistance at elevated temperatures
• 2.01mm (0.079 inch) cutting width with 0.20mm corner radius for precise groove geometry
• Neutral lead angle and neutral insert hand for straightforward radial parting setups
• LF chipbreaker promotes chip control in grooving and cutoff operations
• Universal material grade covers ISO groups H, K, M, P, and S
• Tang-Grip series seating for secure clamping and accurate insert positioning

Compatibility

Designed for use with Tang-Grip series toolholders that accept TAG size 2 cutoff and grooving inserts. Verify toolholder seat dimensions before installation. No specific model numbers were provided in the product data.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine powered down and the spindle locked. Use the appropriate Tang-Grip insert key or torque wrench as specified by the toolholder manufacturer to seat the insert without over-tightening the clamping mechanism. Inspect the toolholder pocket for chips, debris, or wear before seating a new insert. Confirm cutting width and corner radius match the programmed groove geometry before running the first part.
