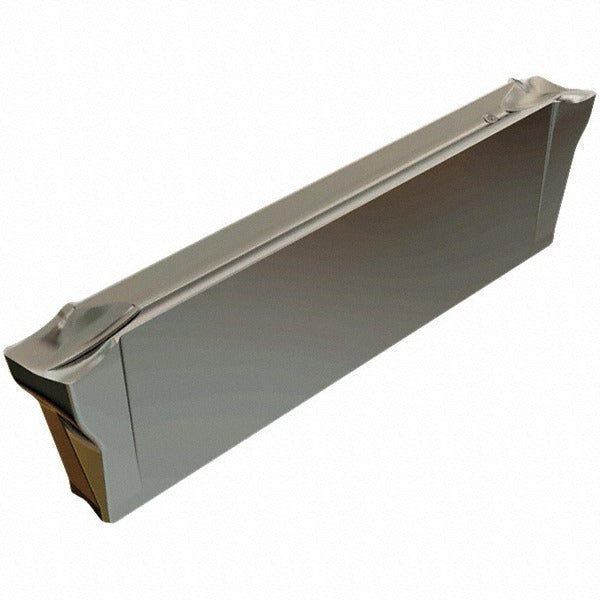

Iscar 6004501 Cutoff Insert 3.1mm Right Hand IC830 Carbide

Product Description

The ISCAR 6004501 is a solid carbide cutoff and parting insert designed for precision grooving and parting operations on CNC lathes and turning centers. It carries the manufacturer grade IC830 with a PVD coating, making it well suited for cutting superalloys and other demanding workpiece materials. The cutting width measures 3.1 mm (0.122 inches), with a maximum depth of cut of 18 mm (0.709 inches). The double-ended design extends usable tool life by providing two cutting edges per insert. A 6-degree right-hand lead angle and a 7-degree relief angle support chip clearance and reduce cutting forces during deep parting operations.

This insert belongs to the ISCAR Do-Grip series and is intended for use in compatible Do-Grip parting and grooving toolholders. It is suited for production turning environments handling superalloys, stainless steels, and similar difficult-to-machine materials. The JS chipbreaker geometry assists with chip control during interrupted or continuous parting cuts. Typical applications include parting off bar stock, deep grooving, and face grooving on CNC turning equipment in both production shops and toolrooms. The insert is sold individually with a minimum order quantity of 10 units.

Key Features

• IC830 PVD-coated solid carbide grade optimized for superalloy and multi-material cutting
• 3.1 mm (0.122 inch) cutting width with a maximum depth of cut of 18 mm (0.709 inches)
• Double-ended insert provides two cutting edges for extended service life
• JS chipbreaker geometry supports chip control in parting and deep grooving operations
• 6-degree right-hand lead angle with 7-degree relief angle for reduced cutting forces
• Clamp-style insert holding method for secure seating in Do-Grip toolholders

Compatibility

Designed for use in ISCAR Do-Grip series parting and grooving toolholders that accept DGR-style inserts with a 3100 size code. Confirm toolholder seat compatibility before installation.

Installation Notes

This insert is installed by a machinist or toolroom technician into a compatible Do-Grip clamping toolholder. Power down and lock out the machine spindle before changing inserts. Use the correct torque on the clamp screw per the toolholder manufacturer documentation — do not overtighten. Inspect the insert seat and clamp for wear or damage before seating a new insert.
