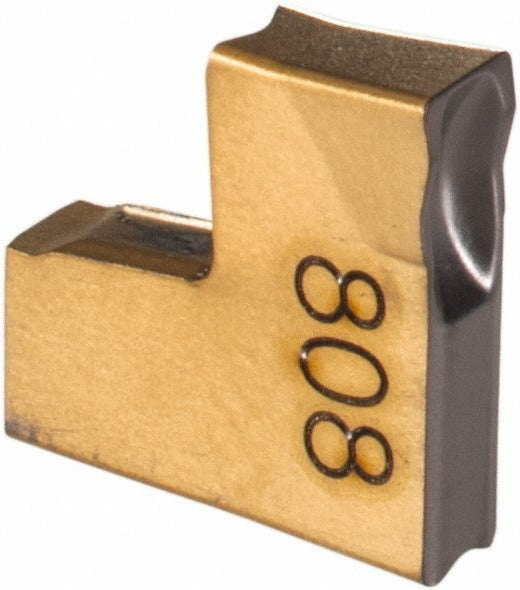

Iscar 6003582 Cutoff Insert Tag N2C Solid Carbide

Product Description

The ISCAR 6003582 is a solid carbide cutoff and grooving insert in the Tang-Grip series, designed for parting and slitting operations on CNC lathes and turning centers. It carries the TAG N2C designation with a 0.079 inch (2.01 mm) cutting width and a neutral lead angle, making it suitable for straight-in plunge cuts. The insert is manufactured from submicron-grade solid carbide and coated with a PVD-applied TiN and TiAlN multilayer finish under the IC808 manufacturer grade. A 7-degree relief angle supports clearance during the cut. This is a single-end insert that locks into compatible Tang-Grip toolholders via a self-grip holding method.

This insert is intended for use in metal removal applications across a broad range of workpiece materials. The IC808 grade with universal primary workpiece material compatibility covers ferritic and martensitic steels (P), stainless steels (M), cast irons (K), hardened steels (H), and superalloys (S). Typical install scenarios include OD grooving, cutoff, and slitting on production turning equipment in job shop and high-volume manufacturing environments. The insert is rated for multi-use tool configurations where the toolholder accepts repeated insert exchanges.

Key Features

• 0.079 inch (2.01 mm) cutting width for narrow-kerf parting and grooving
• Submicron solid carbide substrate with IC808 manufacturer grade for wear resistance
• PVD-coated TiN and TiAlN finish for heat and oxidation resistance at the cutting edge
• Neutral lead angle and neutral hand orientation for straight plunge cutting
• Self-grip Tang-Grip holding method for secure, repeatable insert seating
• Universal material compatibility across ISO material groups H, K, M, P, and S

Compatibility

Designed for use with Tang-Grip series toolholders that accept TAG N2 style inserts. Conforms to ISO 13399 tooling data standards. Verify toolholder bore and insert seat designation before ordering.

Installation Notes

Installation is performed by machining professionals or toolroom technicians. Power down and lock out the machine spindle before seating or removing inserts. Use the manufacturer-recommended insert seating tool or clamp lever to engage the self-grip pocket fully — do not force the insert with pliers or hammers. Inspect the toolholder pocket for wear, chips, or debris before each insert change to maintain accurate cutting geometry.
