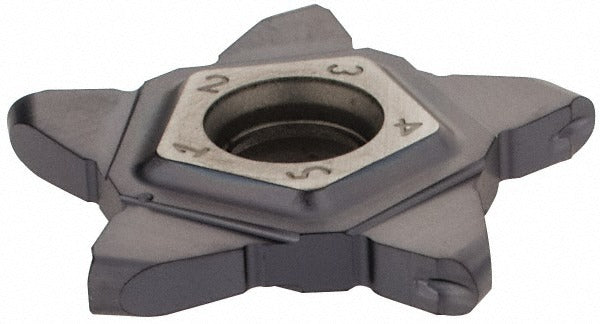

Iscar 6003124 Pentacut Cutoff Insert 2.39mm Grooving

Product Description

The ISCAR 6003124 is a solid carbide cutoff and grooving insert from the PentaCut series, designed for precision parting and grooving operations on CNC lathes and turning centers. It features a 2.39 mm (0.0941 inch) cutting width with a neutral lead angle and a 1.20 mm (0.0472 inch) corner radius. The insert is manufactured from solid carbide in grade IC908 with a PVD coating applied for wear resistance. It carries the J chipbreaker geometry, suited for chip control across a range of workpiece materials. Installation is performed by qualified machinists and toolroom technicians working with ISCAR PentaCut-compatible toolholders.

The 6003124 insert is intended for grooving and cutoff applications in general turning environments. The IC908 grade with PVD coating supports use on a broad range of workpiece materials classified under ISO material groups H, K, M, P, and S, covering steels, stainless steels, cast irons, hardened materials, and superalloys. Maximum depth of cut is 5.00 mm (0.1969 inch). The neutral hand orientation makes it suitable for standard radial grooving setups without directional bias.

Key Features

• Solid carbide construction in manufacturer grade IC908 for consistent edge integrity
• PVD coating process for enhanced wear resistance and thermal stability
• 2.39 mm cutting width with neutral lead angle and neutral hand orientation
• 1.20 mm corner radius for controlled groove geometry
• J chipbreaker geometry for effective chip evacuation across multiple material groups
• Rated for ISO material groups H, K, M, P, and S — broad universal application

Compatibility

Designed for use with ISCAR PentaCut series toolholders that accept the PENTA 24N239 insert size. Compatible workpiece material codes include C1, C2, C6, and C7 per material grade classification. Conforms to ISO 13399 tooling data standards.

Installation Notes

Insert seating and clamping should be performed with the machine fully powered down and the spindle locked. Use the toolholder manufacturer-specified torque sequence and clamping hardware — do not substitute non-OEM clamps or screws, as improper clamping can cause insert micro-movement during cut. Verify insert orientation and chipbreaker direction against the toolholder documentation before first use. This insert should be handled with care to avoid chipping the cutting edge prior to installation.
