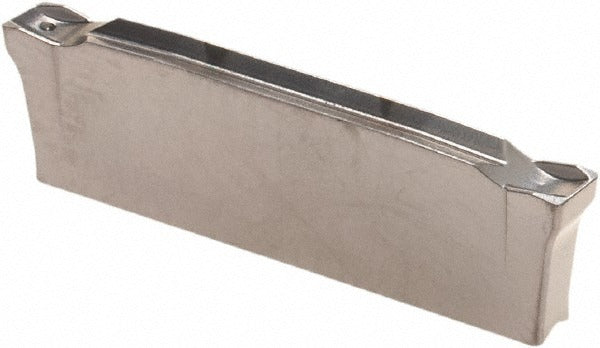

Iscar 6003026 Cutoff Insert 2.2mm Solid Carbide Do-grip

Product Description

The ISCAR 6003026 is a solid carbide cutoff and parting insert designed for precision grooving and parting operations on CNC lathes and turning centers. It carries the DGL insert style with a 2.2 mm cutting width and is manufactured in ISCAR grade IC908 with a PVD coating for extended wear resistance at elevated cutting speeds. The insert features a left-hand lead angle of 6 degrees and a corner radius of 0.20 mm, giving it a controlled chip formation profile suited for tight tolerance work. It is a double-ended insert, making it suitable for two indexed cutting edges per unit. Licensed machinists and CNC operators install this insert in compatible Do-Grip toolholders.

This insert is built for parting and cutoff applications across a wide range of workpiece materials, including steel, stainless steel, cast iron, non-ferrous alloys, and high-temperature alloys, as indicated by primary workpiece material codes H, K, M, P, and S. The IC908 grade with PVD coating performs well in both wet and dry cutting environments, particularly where surface finish and dimensional accuracy at the parting line are critical. It is commonly used in production turning environments in both general machining shops and precision component manufacturing settings. Material grades C1, C2, C6, and C7 are supported.

Key Features

• DGL insert style in ISCAR Do-Grip series for secure clamping and repeatable edge positioning
• IC908 grade with PVD coating for wear resistance across universal workpiece materials
• 2.2 mm cutting width with a 0.20 mm corner radius for controlled parting cuts
• Left-hand, 6-degree lead angle for directional chip flow management
• Double-ended design provides two usable cutting edges per insert
• Maximum depth of cut of 18.00 mm supports deep parting and grooving applications

Compatibility

Designed for use with ISCAR Do-Grip series toolholders that accept the DGL 2202 insert size. Conforms to ISO 13399 standards for cutting tool representation and data exchange.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. The machine spindle must be stopped and the turret fully indexed and locked before seating or removing the insert. Use the appropriate ISCAR torx or clamping key specified for the Do-Grip holder to secure the insert without overtightening. Inspect the insert pocket and clamping surfaces for chips or debris before each insert change to maintain proper seating and edge repeatability.
