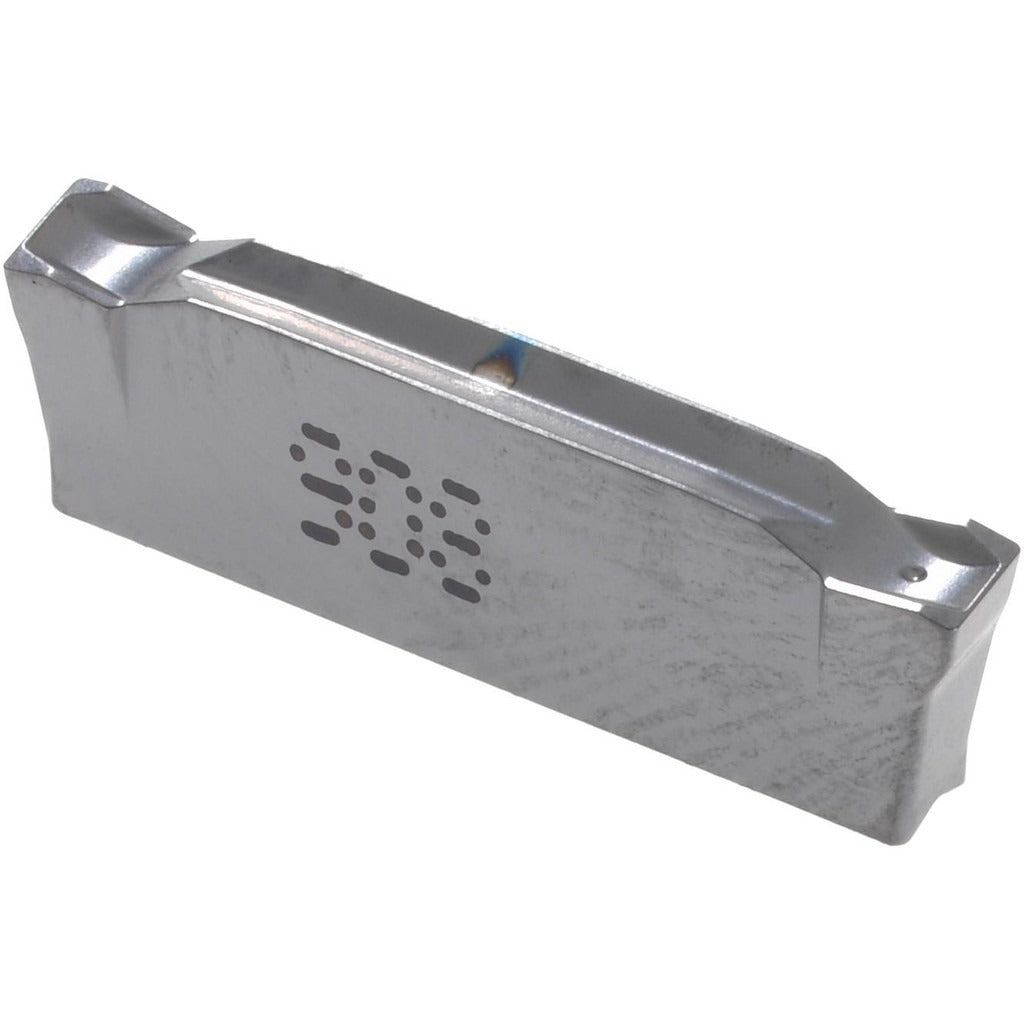

Iscar 6002968 DGR3102C-6D Carbide Cutoff Insert

Product Description

The ISCAR 6002968 is a double-ended carbide cutoff and parting insert manufactured to the DGR3102C-6D geometry in IC908 grade. It belongs to the Do-Grip series and is designed for grooving and parting operations on CNC lathes and turning centers. The insert features a 3.1 mm cutting width (0.1220 inches), a 6-degree right-hand lead angle, a 0.20 mm corner radius, and a PVD coating that improves wear resistance and edge toughness across a broad range of workpiece materials. It is held in place by a clamp-style toolholder and is intended for use by machinists and toolroom technicians performing production parting and cutoff work.

This insert is suited for universal application across multiple workpiece material categories, including steel, stainless steel, cast iron, non-ferrous alloys, and heat-resistant superalloys, as indicated by the ISO material codes P, M, K, H, and S. It is a double-ended design, which extends usable tool life per insert. Maximum depth of cut reaches 18.00 mm (0.7087 inches), making it effective for moderate-diameter barstock cutoff on standard turning setups.

Key Features

• DGR3102C-6D geometry with 3.1 mm cutting width and 6-degree right-hand lead angle
• IC908 PVD-coated carbide grade for enhanced edge toughness and extended tool life
• Double-ended insert design maximizes value per insert
• Corner radius of 0.20 mm for controlled edge geometry on parting cuts
• Maximum depth of cut of 18.00 mm supports moderate-diameter barstock parting
• Clamp-style insert holding for secure seating in Do-Grip compatible toolholders
• Conforms to ISO 13399 tooling data standards

Compatibility

Designed for use with Do-Grip series clamp-style toolholders that accept the DGR insert style. Compatible workpiece material grades include C1, C2, C6, and C7. Suitable for ISO material groups P, M, K, H, and S as specified by ISCAR.

Installation Notes

Installation is performed by a machinist or toolroom technician using the appropriate Do-Grip clamping toolholder. Power down the machine and engage the spindle lock before seating or removing the insert. Ensure the insert pocket and clamping surfaces are clean and free of chips before seating to maintain proper insert contact and geometry. Follow the toolholder manufacturer's clamping torque specifications and verify insert security before resuming cutting operations.
