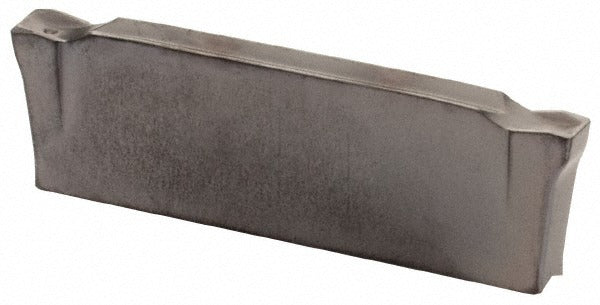

Iscar 6002951 Cutoff Insert 0.0866 in Right Hand Do-grip

Product Description

The ISCAR 6002951 is a double-ended solid carbide cutoff and parting insert designed for precision grooving and cutoff operations on CNC lathes and turning centers. It belongs to ISCAR's Do-Grip series and features a 0.0866 inch (2.20 mm) cutting width with a 6-degree right-hand lead angle and a 0.0079 inch (0.20 mm) corner radius. The insert carries the IC908 manufacturer grade, which is applied via a PVD coating process for enhanced wear resistance and thermal stability. Machining professionals and CNC tooling specialists install this insert in compatible Do-Grip toolholders for high-precision parting and cutoff work across a broad range of workpiece materials.

This insert is suited for parting and grooving applications in both production and job-shop turning environments. The IC908 grade with PVD coating performs across universal workpiece material categories, including steel, stainless steel, cast iron, non-ferrous metals, and heat-resistant super alloys, as indicated by material codes H, K, M, P, and S. Maximum depth of cut reaches 0.7087 inch (18.00 mm), making it capable of handling a wide variety of bar stock diameters in standard lathe setups.

Key Features

• Solid carbide construction with IC908 grade and PVD coating for extended tool life
• 0.0866 inch (2.20 mm) cutting width for precise parting and grooving
• 6-degree right-hand lead angle with C chipbreaker geometry
• Double-ended insert design maximizes value per insert
• Maximum depth of cut of 0.7087 inch (18.00 mm)
• Compatible with universal workpiece material codes H, K, M, P, and S

Compatibility

Designed for use with ISCAR Do-Grip series toolholders that accept the DGR 2202 insert size. Complies with ISO 13399 tooling data standards. Material grades C1, C2, C6, and C7 are supported.

Installation Notes

This insert is installed by a qualified CNC machinist or tooling technician. Power down and lock out the machine spindle before seating or removing inserts. Use the appropriate ISCAR Do-Grip clamping tool to seat the insert fully and evenly — do not force the insert with improvised tools. Verify insert orientation and lead angle direction match the toolholder configuration before resuming cutting operations.
