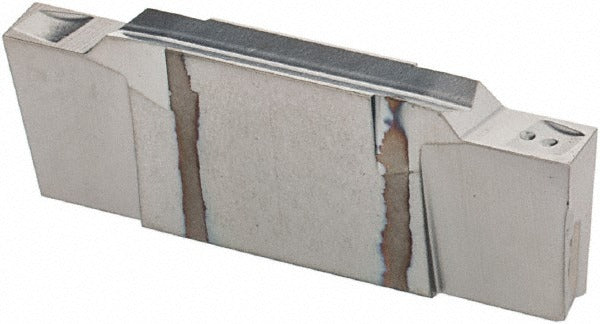

Iscar 6002933 Cutoff Insert IC328 Carbide Do-grip

Product Description

The ISCAR 6002933 is a solid carbide cutoff and parting insert designed for precision grooving and parting operations on CNC lathes and turning centers. It carries manufacturer grade IC328 with a PVD coating, optimizing performance on superalloys and difficult-to-machine materials. The insert features a 0.0941 inch (2.39 mm) cutting width, a double-ended geometry for extended tool life, and a right-hand lead angle of 12 degrees. The WP chipbreaker geometry promotes efficient chip evacuation during deep parting cuts. This insert is installed by machinists and CNC tooling technicians working in precision machining environments.

The 6002933 is suited for parting and cutoff applications in production and job-shop turning operations where tight dimensional control is required. Its IC328 grade with PVD coating is engineered primarily for superalloy workpiece materials, making it appropriate for aerospace, medical, and energy sector machining. The Do-Grip series clamping system secures the insert mechanically without the need for top clamp hardware, allowing for consistent seating and repeatable cutting performance across high-volume runs.

Key Features

• Solid carbide construction with IC328 PVD-coated grade for superalloy and high-temperature alloy cutting
• 2.39 mm (0.0941 inch) cutting width for narrow parting and grooving applications
• Double-ended insert design extends usable tool life per insert
• 12-degree right-hand lead angle for controlled chip flow and reduced cutting forces
• WP chipbreaker geometry supports chip control at moderate to deep depths of cut
• Clamp-held Do-Grip series mounting for rigid, repeatable insert positioning

Compatibility

Designed for use in Do-Grip series toolholders that accept DGR 2400 style inserts. Compatible with workpiece material grades C2, C3, C5, and C6. Manufactured to ISO 13399 standards.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician with the machine in a full stop and lockout-tagout procedures applied before insert indexing or replacement. Seat the insert fully into the Do-Grip clamping pocket and verify mechanical retention before resuming cutting. Inspect the insert pocket and clamping surfaces for chips or debris prior to seating a new insert. Follow the toolholder manufacturer torque and setup guidelines for the specific Do-Grip holder in use.
